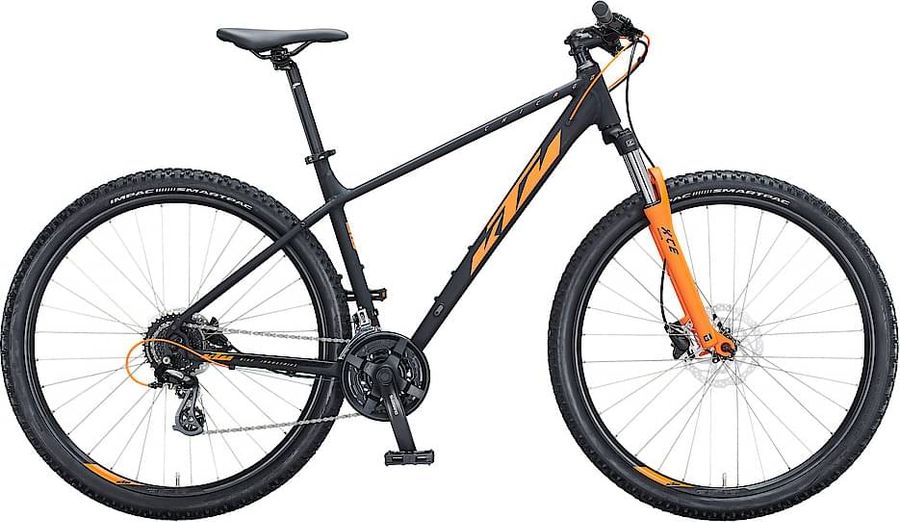

KTM CHICAGO DISC 292 2021
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
15,4 kg
Front travel
100mm
About the KTM CHICAGO DISC 292 2021
The KTM CHICAGO DISC 292 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 15,4 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
KTM Line 7°
|
|---|---|
|
Saddle
|
KTM MTB
|
|
Headset
|
Ritchey Zero Logic PRESS FIT 1-1/8" 15mm cover
|
|
Seatpost
|
KTM Line 1B 27.2
|
|
Handlebar
|
KTM Line Riser 15 720mm
|
|
Discs
|
Shimano RT10 CL 180 / 160
|
|
Brakes
|
Shimano EF505 Hidráulico
|
|
Crankset
|
Shimano TY301 42-34-24
|
|---|---|
|
Cassette
|
Shimano CS-HG31-8
HG
|
|
11-32T 11-34T |
|
|
Chain
|
Shimano CN-HG40
324 g
|
|
|
|
|
Frame
|
29" Alloy 6061 MTB M1110
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
KTM Line - Shimano HB-TX505 CL 32H QR / KTM 29" 36H ROCKY 22 RX 622x22 / RM 2.0 INOX silver
|
|---|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
430,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
572,0
|
592,0
|
612,0
|
632,0
|
|
d
Head tube length
|
100,0
|
110,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
97,0
|
97,0
|
97,0
|
97,0
|
|
h
Wheelbase
|
1085,0
|
1106,0
|
1128,0
|
1149,0
|
|
i
Chainstay length
|
437,0
|
437,0
|
437,0
|
437,0
|
|
j
Bottom bracket drop
|
70,0
|
70,0
|
70,0
|
70,0
|
|
k
Stack height
|
602,0
|
611,0
|
626,0
|
639,0
|
|
l
Reach
|
398,0
|
416,0
|
432,0
|
448,0
|
|
m
Standover height
|
759,0
|
766,0
|
796,0
|
828,0
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
304,0
|
304,0
|
|
y
Front center
|
657,0
|
678,0
|
700,0
|
721,0
|
