KTM MAC LYCAN 271 GLORIOUS 2021

E-Bike
Women's Bike
MTB Trail
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,8 kg
Front travel
140mm
Rear travel
140mm

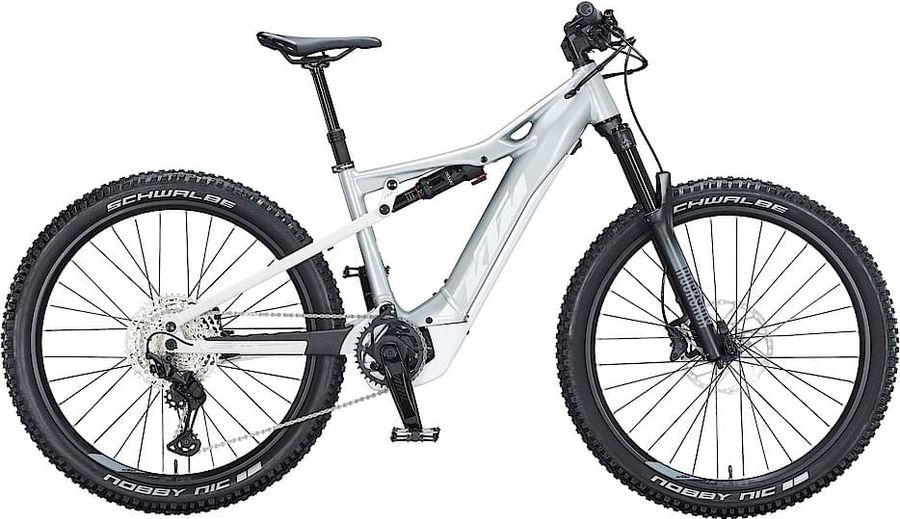

KTM MAC LYCAN 271 GLORIOUS 2021

About the KTM MAC LYCAN 271 GLORIOUS 2021

The KTM MAC LYCAN 271 GLORIOUS 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 24,8 kg.

Features

The KTM MAC LYCAN 271 GLORIOUS 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Bosch KIOX TFT Display with Remote
Components
Steam
KTM Team Trail35 Kiox
Saddle
Ergon SMA10 Gel Women
Battery
Bosch PowerTUBE 625Wh hor.
Charger
Bosch STANDARD Charger 4A
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seatpost
KTM Comp dropper internal
Handlebar
KTM Comp Trail35 rizer15 760mm
Discs
Shimano RT64 CL 203 / 180
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
KTM TRAIL ISIS 170mm Q16
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Shifter
Shimano Deore M6100-12
Bottom bracket
Bosch, press-fit
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Macina Lycan 27.5" Alloy6061 SLL-E 140mm; PT625 Bosch Gen.4 / M-0196
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
KTM Line - Shimano SLX M7110B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
450,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
585,0
605,0
635,0
d
Head tube length
120,0
120,0
125,0
137,0
e
Head tube angle
66,0º
67,0º
67,0º
67,0º
f
Rake
38,0
44,0
44,0
44,0
g
Trail
117,0
103,0
103,0
103,0
h
Wheelbase
1150,0
1164,0
1185,0
1217,0
i
Chainstay length
450,0
450,0
450,0
450,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
595,0
598,0
603,0
614,0
l
Reach
400,0
419,0
438,0
465,0
m
Standover height
767,0
766,0
770,0
773,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
700,0
714,0
735,0
767,0
