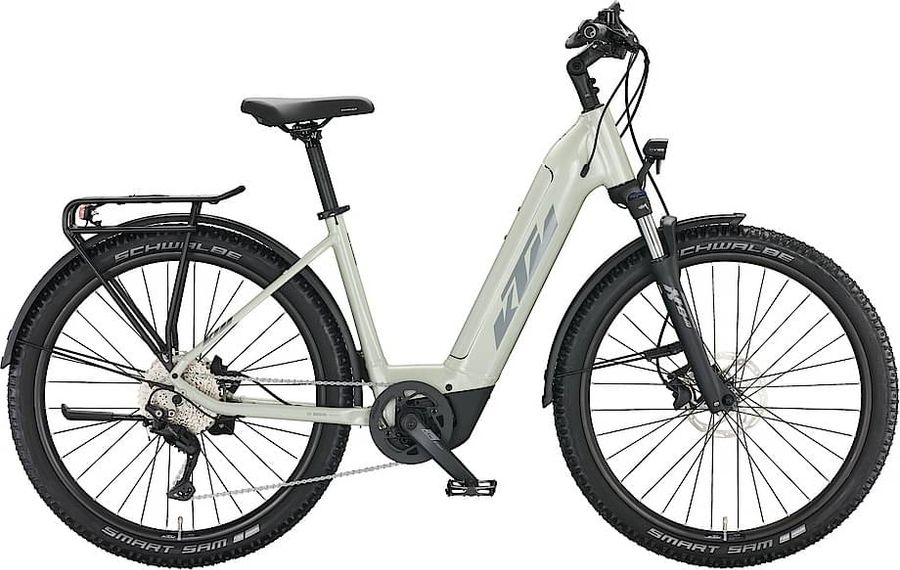

KTM MACINA AERA 571 LFC 2022
The KTM MACINA AERA 571 LFC 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
26,2 kg
Front travel
80mm
About the KTM MACINA AERA 571 LFC 2022
The KTM MACINA AERA 571 LFC 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 26,2 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Bosch INTUVIA LCD Display with Remote
|
|---|
|
Steam
|
KTM Line UP3 adjust. 0-90°
|
|---|---|
|
Saddle
|
Selle Royal Essenza+
|
|
Battery
|
Bosch PowerTUBE 500Wh hor.
|
|
Charger
|
Bosch COMPACT Charger 2A
|
|
Headset
|
Ritchey Zero Logic Comp 1.1/8"-1.5"
|
|
Seatpost
|
KTM Comp 30.9/300
|
|
Handlebar
|
KTM Comp rizer15 680mm
|
|
Discs
|
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180
|
|
Brakes
|
Tektro HD-T390
|
|
Crankset
|
KTM COMP ISIS 170mm Q16
|
|---|---|
|
Motor
|
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
|
|
Shifter
|
Shimano Deore M4100-10 display
|
|
Bottom bracket
|
Bosch, press-fit
|
|
Chain
|
KMC e10 Sport
|
|
Cassette
|
Shimano Deore CS-M4100-10
HG
|
|
11-46T |
|
|
Frame
|
Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-2450
|
|---|---|
|
Front suspension
|
SR Suntour XCM 32
|
|
Rims
|
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
|
|---|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
430,0
|
460,0
|
510,0
|
560,0
|
|
b
Seat tube angle
|
71,0º
|
71,0º
|
71,0º
|
71,0º
|
|
c
Top tube length
|
581,0
|
586,0
|
596,0
|
611,0
|
|
d
Head tube length
|
165,0
|
165,0
|
174,0
|
190,0
|
|
e
Head tube angle
|
67,0º
|
68,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
39,0
|
39,0
|
39,0
|
33,0
|
|
g
Trail
|
109,0
|
102,0
|
95,0
|
101,0
|
|
h
Wheelbase
|
1134,0
|
1128,0
|
1127,0
|
1137,0
|
|
i
Chainstay length
|
483,0
|
483,0
|
483,0
|
483,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
615,0
|
621,0
|
639,0
|
656,0
|
|
l
Reach
|
371,0
|
374,0
|
378,0
|
388,0
|
|
m
Standover height
|
404,0
|
404,0
|
404,0
|
404,0
|
|
x
Bottom bracket height
|
295,0
|
295,0
|
295,0
|
295,0
|
|
y
Front center
|
657,0
|
651,0
|
650,0
|
660,0
|
