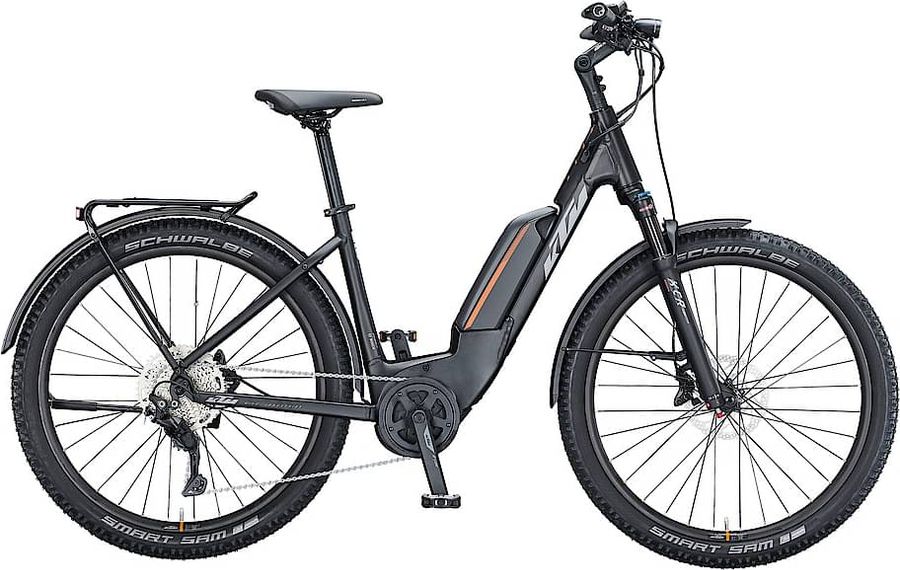

KTM MACINA AERA P272 LFC 2021
The KTM MACINA AERA P272 LFC 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
24,1 kg
Front travel
80mm
About the KTM MACINA AERA P272 LFC 2021
The KTM MACINA AERA P272 LFC 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 24,1 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Bosch INTUVIA LCD Display with Remote
|
|---|
|
Steam
|
KTM Line UP3 adjust. 0-90°
|
|---|---|
|
Saddle
|
Selle Royal Essenza
|
|
Battery
|
Bosch PowerPACK 500Wh
|
|
Charger
|
Bosch STANDARD Charger 4A
|
|
Headset
|
Ritchey Zero Logic Comp 1.1/8"-1.5"
|
|
Seatpost
|
KTM Comp 30.9/350
|
|
Handlebar
|
KTM Comp rizer15 680mm
|
|
Discs
|
Shimano RT30 CL 180 / 180
|
|
Brakes
|
Shimano BR-MT400
Hydraulic disc brake
2 piston
|
|
BL-MT401 BL-MT402-3A SM-RT54* SM-RT56* |
|
|
Crankset
|
KTM LINE BNI 170mm Q16
|
|---|---|
|
Motor
|
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
|
|
Shifter
|
Shimano Deore M4100-10 display
|
|
Bottom bracket
|
Bosch, press-fit
|
|
Chain
|
KMC e10 Sport
|
|
Cassette
|
Shimano Deore CS-M4100-10
HG
|
|
11-46T |
|
|
Frame
|
Macina Offroad 27.5" US Alloy6061; Si-PP500Wh Bosch Gen.3 / T-0280
|
|---|---|
|
Front suspension
|
SR Suntour XCR-34
|
|
Rims
|
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
|
|---|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
430,0
|
460,0
|
510,0
|
560,0
|
|
b
Seat tube angle
|
71,0º
|
71,0º
|
71,0º
|
71,0º
|
|
c
Top tube length
|
576,0
|
586,0
|
601,0
|
622,0
|
|
d
Head tube length
|
160,0
|
160,0
|
174,0
|
190,0
|
|
e
Head tube angle
|
69,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
40,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
94,0
|
80,0
|
80,0
|
80,0
|
|
h
Wheelbase
|
1121,0
|
1123,0
|
1133,0
|
1152,0
|
|
i
Chainstay length
|
488,0
|
488,0
|
488,0
|
488,0
|
|
j
Bottom bracket drop
|
55,0
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
625,0
|
627,0
|
640,0
|
656,0
|
|
l
Reach
|
369,0
|
375,0
|
381,0
|
394,0
|
|
m
Standover height
|
419,0
|
419,0
|
419,0
|
419,0
|
|
x
Bottom bracket height
|
300,0
|
300,0
|
300,0
|
300,0
|
|
y
Front center
|
638,0
|
640,0
|
650,0
|
669,0
|
