KTM Macina Chacana 291 2020

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
24,4 kg
Front travel
130mm
Rear travel
125mm

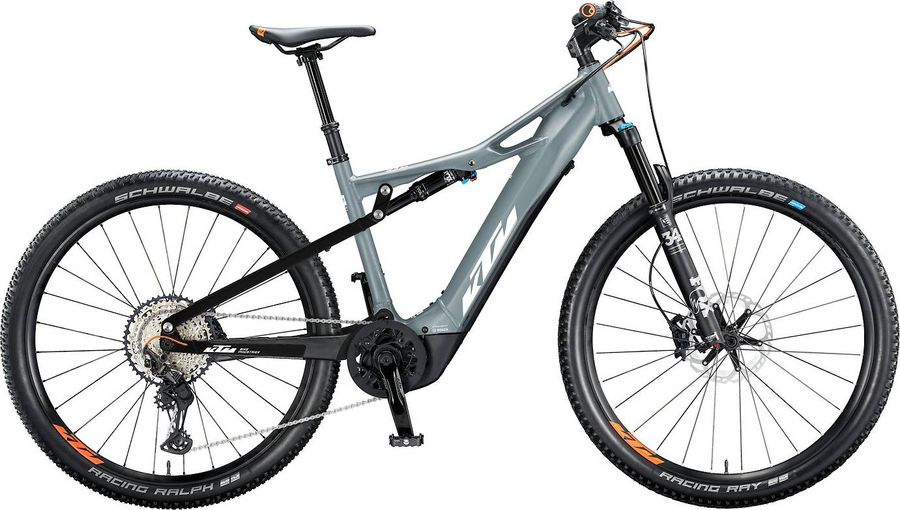

KTM Macina Chacana 291 2020

About the KTM Macina Chacana 291 2020

The KTM Macina Chacana 291 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,4 kg.

Features

The KTM Macina Chacana 291 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Ergon GE10 Evo ergonomic
Pedals
VP-197 alloy (light)
Components
Steam
KTM Team, with Kiox mount
Saddle
Ergon SM10 Sport Men
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Headset
KTM Team
Seatpost
FOX Transfer Performance dropper
Handlebar
KTM Team, 15mm rise, 740mm width
Brake lever
Shimano Deore XT M8120
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
KTM Team, ISIS, 170mm length
Motor
Bosch Performance CX Gen.4, 75Nm torque
Shifter
Shimano XT M8100, 12-speed
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Aluminum
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance
Wheels
Rims
KTM E-Comp Trail, DT Swiss-made, tubeless ready
Tires
Front: Schwalbe Racing Ray, Evo, SnakeSkin, TLE, Rear: Schwalbe Racing Ralph, Evo, SnakeSkin, TLE
Spokes
KTM E-Comp Trail wheelset
Rear hub
KTM E-Comp Trail wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Front hub
KTM E-Comp Trail wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Geometry

Size SM MD LG
a
Seat tube length
430,0
450,0
480,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
581,0
601,0
631,0
d
Head tube length
120,0
125,0
137,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
51,0
51,0
51,0
g
Trail
104,0
104,0
104,0
h
Wheelbase
1187,0
1208,0
1239,0
i
Chainstay length
472,0
472,0
472,0
j
Bottom bracket drop
38,0
38,0
38,0
k
Stack height
625,0
630,0
641,0
l
Reach
406,0
425,0
452,0
m
Standover height
781,0
784,0
787,0
x
Bottom bracket height
336,0
336,0
336,0
y
Front center
718,0
738,0
769,0
