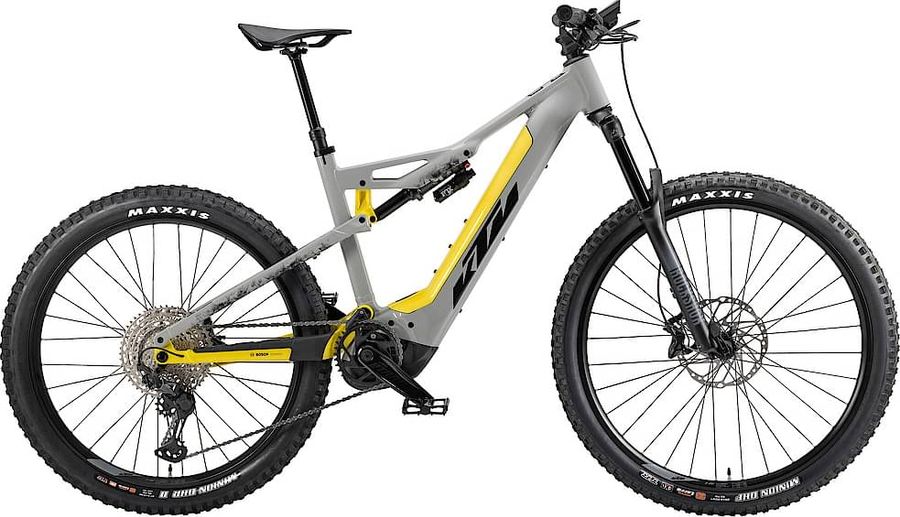

KTM MACINA KAPOHO 7972 2022
The KTM MACINA KAPOHO 7972 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29" / 27,5"
Suspension type
Full suspension
Weight
27,9 kg
Front travel
160mm
Rear travel
160mm
About the KTM MACINA KAPOHO 7972 2022
The KTM MACINA KAPOHO 7972 2022 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 27,9 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon GE10 Evo ergonomic
|
|---|---|
|
Pedals
|
VPE-527 alloy flat
|
|
Remote
|
Bosch KIOX TFT Display smart system
|
|
Steam
|
KTM Team Trail35
|
|---|---|
|
Saddle
|
Selle Italia Model-X Flow
|
|
Battery
|
Bosch PowerTUBE 750Wh hor. smart system
|
|
Charger
|
Bosch STANDARD Charger 4A smart system
|
|
Headset
|
Acros AICR internal 1.1/8>1.5" angle limit
|
|
Seatpost
|
KTM Comp dropper internal
|
|
Handlebar
|
KTM Team Trail35 rizer25 800mm
|
|
Discs
|
Shimano RT64 CL 203 / EM600 CL 180
|
|
Brake lever
|
Shimano Deore M6100
|
|
Brakes
|
Shimano Deore BR-M6100
Hydraulic disc brake
2 piston
|
|
SM-RT56* SM-RT64 SM-RT66 |
|
|
Crankset
|
KTM TRAIL ISIS 160mm Q16
|
|---|---|
|
Motor
|
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
|
|
Shifter
|
Shimano Deore M6100-12
|
|
Chain guide
|
Upper slider
|
|
Bottom bracket
|
Bosch, press-fit
|
|
Rear derailleur
|
Shimano Deore XT RD-M8100
284 g
SGS
12s
|
|
|
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano Deore CS-M6100-12
HYPERGLIDE+
|
|
|
|
|
Frame
|
Macina Kapoho Dimmix Alloy6061 SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2266
|
|---|---|
|
Rear suspension
|
Fox Float X Performance
|
|
Front suspension
|
RockShox 35 Gold RL
DebonAir
|
|
|
|
|
Rims
|
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 27.5" x 2.8"
|
|
Spokes
|
Front: DT Swiss Champion 2.0, Rear: DT Swiss Alpine II 2.34
|
|
Rear hub
|
Shimano MT410, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
|
|
Front hub
|
Shimano MT410, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
|
Geometry
| Size | MD | LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
430,0
|
450,0
|
480,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
586,0
|
606,0
|
626,0
|
|
d
Head tube length
|
100,0
|
110,0
|
125,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
49,0
|
48,0
|
46,0
|
|
g
Trail
|
113,0
|
114,0
|
116,0
|
|
h
Wheelbase
|
1202,0
|
1224,0
|
1247,0
|
|
i
Chainstay length
|
438,0
|
438,0
|
438,0
|
|
j
Bottom bracket drop
|
7,0
|
7,0
|
7,0
|
|
k
Stack height
|
603,0
|
612,0
|
626,0
|
|
l
Reach
|
439,0
|
458,0
|
477,0
|
|
m
Standover height
|
799,0
|
801,0
|
803,0
|
|
x
Bottom bracket height
|
367,0
|
367,0
|
367,0
|
|
y
Front center
|
764,0
|
786,0
|
809,0
|
