KTM MACINA KAPOHO ELITE 2021

E-Bike
MTB Enduro
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
24,8 kg
Front travel
160mm
Rear travel
160mm

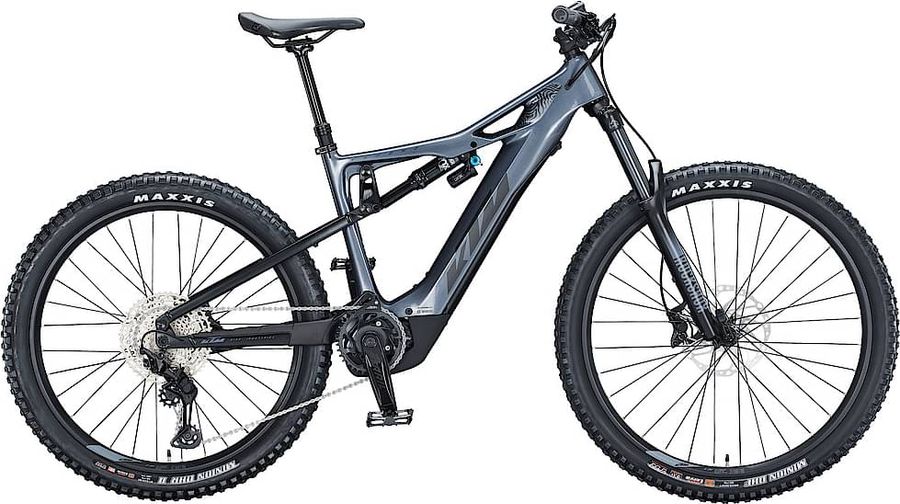

KTM MACINA KAPOHO ELITE 2021

About the KTM MACINA KAPOHO ELITE 2021

The KTM MACINA KAPOHO ELITE 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 24,8 kg.

Features

The KTM MACINA KAPOHO ELITE 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Bosch PURION LCD Display
Components
Steam
KTM Team Trail35
Saddle
Ergon SM10 E-Mountain
Battery
Bosch PowerTUBE 625Wh hor.
Charger
Bosch STANDARD Charger 4A
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seatpost
KTM Comp dropper internal
Handlebar
KTM Team Trail35 rizer25 800mm
Discs
Shimano RT64 CL 203 / 180
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
KTM TRAIL ISIS 160mm Q16
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Shifter
Shimano Deore M6100-12
Bottom bracket
Bosch, press-fit
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Macina Kapoho Dimmix Performance Carbon SLL-LTE 160mm; PT625 Bosch Gen.4 / M-0146
Front suspension
RockShox 35 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35S-TK-A1
Name
35 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black

Geometry

Size MD LG XL
a
Seat tube length
430,0
450,0
480,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
585,0
605,0
635,0
d
Head tube length
100,0
110,0
125,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
45,0
44,0
44,0
g
Trail
125,0
126,0
126,0
h
Wheelbase
1212,0
1234,0
1267,0
i
Chainstay length
438,0
438,0
438,0
j
Bottom bracket drop
9,0
9,0
9,0
k
Stack height
601,0
610,0
623,0
l
Reach
443,0
461,0
488,0
m
Standover height
792,0
794,0
801,0
x
Bottom bracket height
365,0
365,0
365,0
y
Front center
774,0
796,0
829,0
