KTM Macina Kapoho LTD 2020

E-Bike
MTB Enduro
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,5 kg
Front travel
160mm
Rear travel
160mm
KTM Macina Kapoho LTD 2020

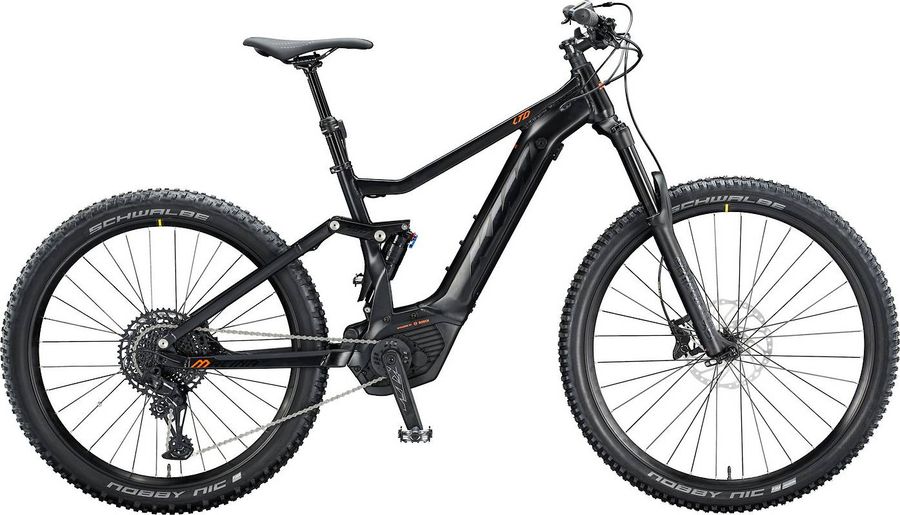

About the KTM Macina Kapoho LTD 2020

The KTM Macina Kapoho LTD 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,5 kg.

Features

The KTM Macina Kapoho LTD 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
KTM Comp, lock-on
Pedals
VP-195E alloy
Components
Steam
KTM Comp, 7° rise
Saddle
KTM Line MTB
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Headset
KTM Team drop-in
Seatpost
KTM Comp dropper, external cable
Handlebar
KTM Comp, 25mm rise, 740mm width
Brake lever
Shimano MT420
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
KTM Delta, ISIS, 160mm length
Motor
Bosch Performance CX Gen.2, 75Nm torque
Shifter
SRAM SX Eagle E-Click, 12-speed
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Aluminum
Front suspension
RockShox 35 Gold RL DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35G-RL-A1
Name
35 Gold RL
Spring
DebonAir
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
Front: Mavic E-XM430, 32 hole, 29", Rear: Mavic E-XM435, 32 hole, 27.5"
Tires
Schwalbe Nobby Nic, Performance, TLR, 29" front, 27.5" rear
Spokes
Front: DT Swiss Champion, 2.0, black, Rear: DT Swiss Alpine II, 2.34, black
Rear hub
Shimano Deore M6010B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Front hub
Shimano Deore M6010B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Geometry

Size XS SM MD LG
a
Seat tube length
410,0
430,0
480,0
530,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
558,0
578,0
598,0
618,0
d
Head tube length
120,0
120,0
125,0
137,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
47,0
47,0
47,0
46,0
g
Trail
107,0
107,0
107,0
108,0
h
Wheelbase
1203,0
1223,0
1244,0
1266,0
i
Chainstay length
488,0
488,0
488,0
488,0
j
Bottom bracket drop
7,0
7,0
7,0
7,0
k
Stack height
616,0
617,0
621,0
628,0
l
Reach
382,0
402,0
421,0
441,0
m
Standover height
824,0
824,0
845,0
873,0
x
Bottom bracket height
348,0
348,0
348,0
348,0
y
Front center
715,0
735,0
756,0
778,0
