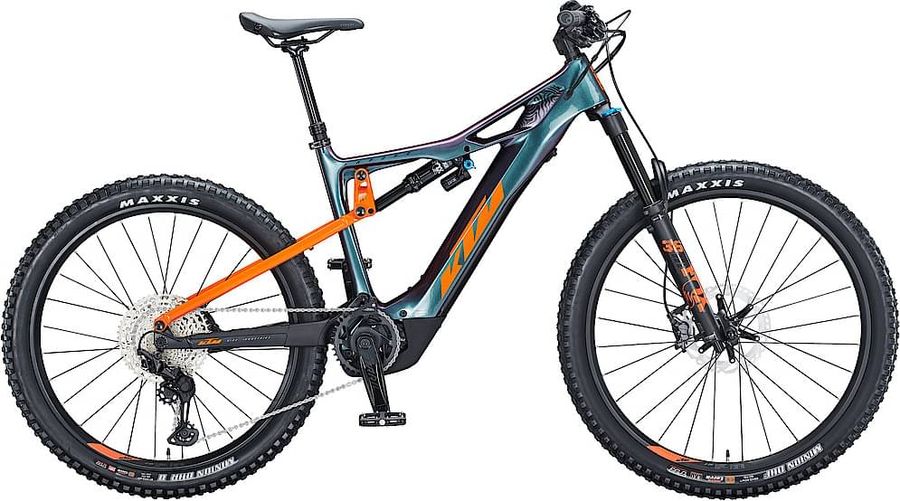

KTM MACINA KAPOHO MASTER 2021
The KTM MACINA KAPOHO MASTER 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
24,2 kg
Front travel
160mm
Rear travel
160mm
About the KTM MACINA KAPOHO MASTER 2021
The KTM MACINA KAPOHO MASTER 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 24,2 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Bosch KIOX TFT Display with Remote
|
|---|
|
Steam
|
KTM Team Trail35 Kiox
|
|---|---|
|
Saddle
|
Ergon SM10 E-Mountain
|
|
Battery
|
Bosch PowerTUBE 625Wh hor.
|
|
Charger
|
Bosch STANDARD Charger 4A
|
|
Headset
|
KTM Team eMTB 1.1/8"-1.5" angle limit
|
|
Seatpost
|
KTM Comp dropper internal
|
|
Handlebar
|
KTM Team Trail35 rizer25 800mm
|
|
Discs
|
Shimano MT800 CL 203 / 180 Freeza
|
|
Brakes
|
Shimano Deore XT BR-M8100
392 (BL-M8100) g
Hydraulic disc brake
2 piston
|
|
BL-T8100 |
|
|
Crankset
|
KTM TRAIL ISIS 160mm Q16
|
|---|---|
|
Motor
|
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
|
|
Shifter
|
Shimano Deore XT M8100-12
|
|
Bottom bracket
|
Bosch, press-fit
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano Deore CS-M6100-12
HYPERGLIDE+
|
|
|
|
|
Frame
|
Macina Kapoho Dimmix Performance Carbon SLL-LTE 160mm; PT625 Bosch Gen.4 / M-0146
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Performance
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
KTM Line - Shimano Deore XT M8110BS CL 28H 110-15TA / Ambrosio E30 Trail 28H 622x30TC / DT Champion 2.0 black
|
|---|
Geometry
| Size | MD | LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
430,0
|
450,0
|
480,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
585,0
|
605,0
|
635,0
|
|
d
Head tube length
|
100,0
|
110,0
|
125,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
45,0
|
44,0
|
44,0
|
|
g
Trail
|
125,0
|
126,0
|
126,0
|
|
h
Wheelbase
|
1212,0
|
1234,0
|
1267,0
|
|
i
Chainstay length
|
438,0
|
438,0
|
438,0
|
|
j
Bottom bracket drop
|
9,0
|
9,0
|
9,0
|
|
k
Stack height
|
601,0
|
610,0
|
623,0
|
|
l
Reach
|
443,0
|
461,0
|
488,0
|
|
m
Standover height
|
792,0
|
794,0
|
801,0
|
|
x
Bottom bracket height
|
365,0
|
365,0
|
365,0
|
|
y
Front center
|
774,0
|
796,0
|
829,0
|
