BikeWise

KTM MACINA KAPOHO MASTER 2022

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Full suspension
Weight
25,3 kg
Front travel
160mm
Rear travel
160mm

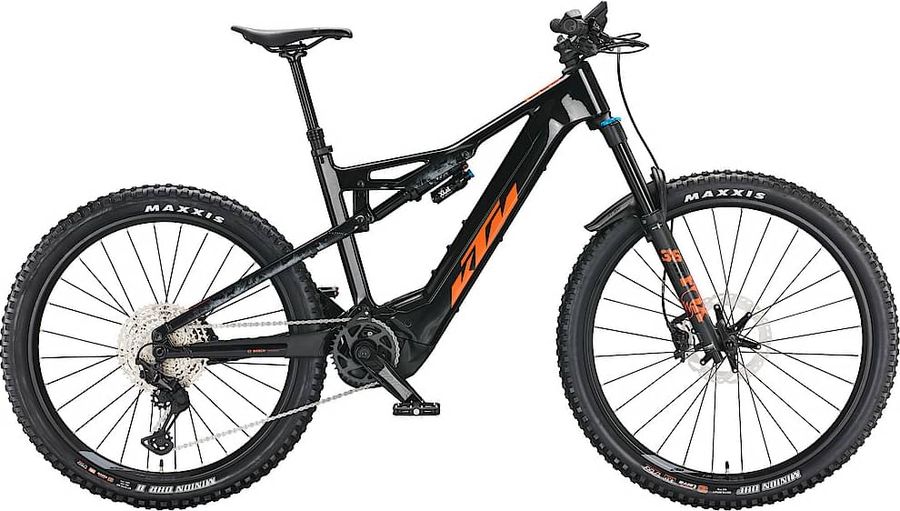

KTM MACINA KAPOHO MASTER 2022

About the KTM MACINA KAPOHO MASTER 2022

The KTM MACINA KAPOHO MASTER 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 25,3 kg.

Features

The KTM MACINA KAPOHO MASTER 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 Evo ergonomic
Pedals
VP-539 nylon flat
Remote
Bosch KIOX TFT Display smart system
Components
Steam
KTM Team Trail35
Saddle
Selle San Marco GND Supercomfort
Battery
Bosch PowerTUBE 750Wh hor. smart system
Charger
Bosch STANDARD Charger 4A smart system
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seatpost
KTM Comp dropper internal
Handlebar
KTM Team Trail35 rizer25 800mm
Discs
Shimano MT800 CL 203 / EM810 CL 180 freeza
Brake lever
Shimano Deore XT M8100
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
KTM TRAIL ISIS 160mm Q16
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Shifter
Shimano Deore XT M8100-12
Chain guide
Upper slider
Bottom bracket
Bosch, press-fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Macina Kapoho Dimmix Perf. Carbon SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2246
Rear suspension
Fox Float X Performance
Front suspension
Fox 36 Float Performance
Wheels
Rims
KTM Line
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 27.5" x 2.8"
Spokes
KTM Line wheelset
Rear hub
KTM Line wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Front hub
KTM Line wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver

Geometry

Size MD LG XL
a
Seat tube length
430,0
450,0
480,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
586,0
606,0
626,0
d
Head tube length
100,0
110,0
125,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
45,0
44,0
44,0
g
Trail
125,0
126,0
126,0
h
Wheelbase
1210,0
1232,0
1255,0
i
Chainstay length
438,0
438,0
438,0
j
Bottom bracket drop
7,0
7,0
7,0
k
Stack height
599,0
608,0
622,0
l
Reach
441,0
459,0
476,0
m
Standover height
792,0
795,0
797,0
x
Bottom bracket height
-
-
-
y
Front center
772,0
794,0
817,0
