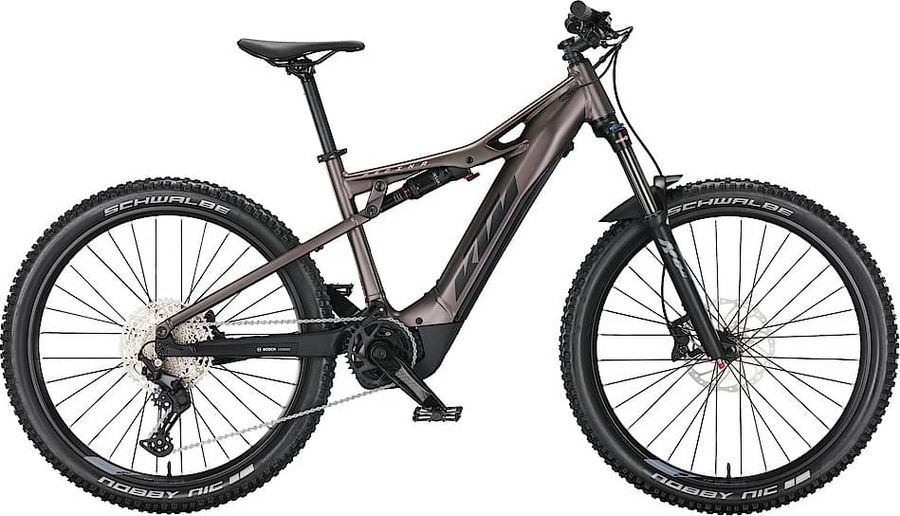

KTM MACINA LYCAN 671 LTD GLORIOUS 2022

E-Bike
MTB Trail
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,9 kg
Front travel
140mm
Rear travel
140mm
KTM MACINA LYCAN 671 LTD GLORIOUS 2022

About the KTM MACINA LYCAN 671 LTD GLORIOUS 2022

The KTM MACINA LYCAN 671 LTD GLORIOUS 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 24,9 kg.

Features

The KTM MACINA LYCAN 671 LTD GLORIOUS 2022 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Remote
Bosch PURION LCD Display
Components
Steam
KTM Comp 7°
Saddle
KTM Line Sport
Battery
Bosch PowerTUBE 625Wh hor.
Charger
Bosch STANDARD Charger 4A
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seatpost
KTM Comp 30.9/400
Handlebar
KTM Comp rizer25 740mm
Discs
Shimano RT64 CL 203 / EM600 CL 180
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
KTM TRAIL ISIS 170mm Q16
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Shifter
Shimano Deore M5100-11
Bottom bracket
Bosch, press-fit
Chain
KMC e11 Sport
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Frameset
Frame
Macina Lycan 27.5" Alloy6061 SLL-E 140mm; PT625 Bosch Gen.4 / M-0196
Front suspension
SR Suntour XCR-34
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
450,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
585,0
605,0
635,0
d
Head tube length
120,0
120,0
125,0
137,0
e
Head tube angle
66,0º
67,0º
67,0º
67,0º
f
Rake
38,0
44,0
44,0
44,0
g
Trail
117,0
103,0
103,0
103,0
h
Wheelbase
1150,0
1164,0
1185,0
1217,0
i
Chainstay length
450,0
450,0
450,0
450,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
595,0
598,0
603,0
614,0
l
Reach
400,0
419,0
438,0
465,0
m
Standover height
767,0
766,0
770,0
773,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
700,0
714,0
735,0
767,0
