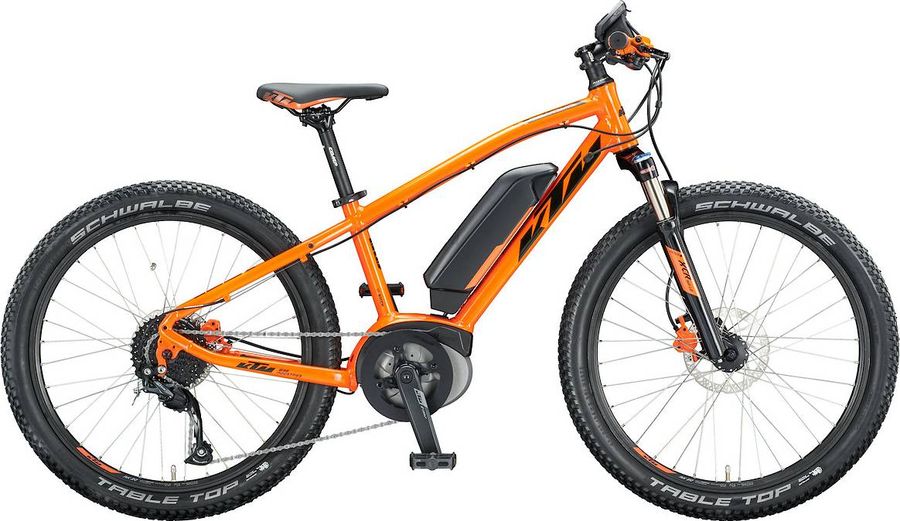

KTM Macina Mini Me 241 2020
The KTM Macina Mini Me 241 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
24"
Suspension type
Hardtail
Weight
19,1 kg
Front travel
63mm
About the KTM Macina Mini Me 241 2020
The KTM Macina Mini Me 241 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 19,1 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
KTM Comp, lock-on
|
|---|---|
|
Pedals
|
VP-225 Kids
|
|
Steam
|
KTM Comp, 7° rise
|
|---|---|
|
Saddle
|
KTM Line Kid
|
|
Battery
|
Bosch PowerPack, external/removable
|
|
Headset
|
Ritchey OE Logic Zero
|
|
Seatpost
|
KTM Comp, 300mm length
|
|
Handlebar
|
KTM Comp Flat, 560mm width
|
|
Brake lever
|
Tektro HD-M291, 2-finger
|
|
Brakes
|
Tektro HD-M291
|
|
Crankset
|
KTM Comp Kid, 170mm length
|
|---|---|
|
Motor
|
Bosch Active Gen.3, 40Nm torque
|
|
Cassette
|
9-speed
|
|
Shifter
|
Shimano Altus M2010, 9-speed, with gear display
|
|
Rear derailleur
|
Shimano Altus RD-M2000
SGS
9s
|
|
|
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
SR Suntour XCR
|
|
Rims
|
KTM
|
|---|---|
|
Tires
|
Schwalbe Table Top
|
Geometry
| Size | XS |
|---|---|
|
a
Seat tube length
|
340,0
|
|
b
Seat tube angle
|
72,5º
|
|
c
Top tube length
|
520,0
|
|
d
Head tube length
|
120,0
|
|
e
Head tube angle
|
70,0º
|
|
f
Rake
|
43,0
|
|
g
Trail
|
-
|
|
h
Wheelbase
|
1007,0
|
|
i
Chainstay length
|
423,0
|
|
j
Bottom bracket drop
|
40,0
|
|
k
Stack height
|
509,0
|
|
l
Reach
|
357,0
|
|
m
Standover height
|
668,0
|
|
x
Bottom bracket height
|
-
|
|
y
Front center
|
587,0
|
