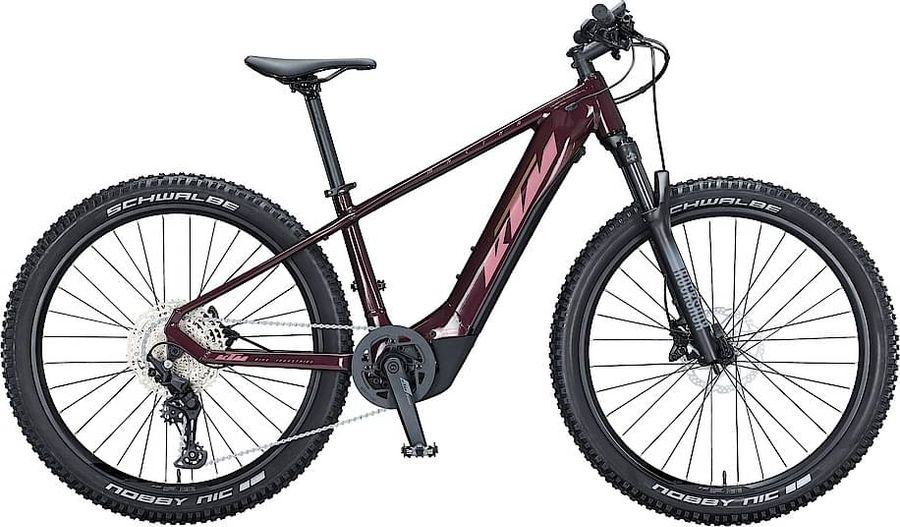

KTM MACINA TEAM 272 GLORIOUS 2021
The KTM MACINA TEAM 272 GLORIOUS 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
23,2 kg
Front travel
100mm
About the KTM MACINA TEAM 272 GLORIOUS 2021
The KTM MACINA TEAM 272 GLORIOUS 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 23,2 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Bosch INTUVIA LCD Display with Remote
|
|---|
|
Steam
|
KTM Comp 7°
|
|---|---|
|
Saddle
|
KTM Line Sport
|
|
Battery
|
Bosch PowerTUBE 625Wh hor.
|
|
Charger
|
Bosch STANDARD Charger 4A
|
|
Headset
|
KTM Team eMTB 1.1/8"-1.5" angle limit
|
|
Seatpost
|
KTM Comp 30.9/350
|
|
Handlebar
|
KTM Comp rizer15 700mm
|
|
Discs
|
Shimano RT54 CL 180 / 180
|
|
Brakes
|
Shimano BR-MT400
Hydraulic disc brake
2 piston
|
|
BL-MT401 BL-MT402-3A SM-RT54* SM-RT56* |
|
|
Crankset
|
KTM COMP ISIS 170mm Q16
|
|---|---|
|
Motor
|
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
|
|
Shifter
|
Shimano Deore M5100-11 display
|
|
Bottom bracket
|
Bosch, press-fit
|
|
Chain
|
KMC e11 Sport
|
|
Cassette
|
Shimano Deore CS-M5100-11
HG
|
|
11-51T |
|
|
Frame
|
Macina MTB 27.5" Alloy6061; PT625Wh Bosch Gen.4 / M-1676
|
|---|---|
|
Front suspension
|
RockShox 35 Silver TK
Coil, Solo Air
|
|
|
|
|
Rims
|
KTM Line - Shimano MT400B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black
|
|---|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
380,0
|
430,0
|
480,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
572,0
|
582,0
|
592,0
|
|
d
Head tube length
|
120,0
|
125,0
|
137,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
89,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1,1e3
|
1111,0
|
1122,0
|
|
i
Chainstay length
|
442,0
|
442,0
|
442,0
|
|
j
Bottom bracket drop
|
47,0
|
47,0
|
47,0
|
|
k
Stack height
|
580,0
|
585,0
|
596,0
|
|
l
Reach
|
405,0
|
414,0
|
420,0
|
|
m
Standover height
|
752,0
|
763,0
|
791,0
|
|
x
Bottom bracket height
|
308,0
|
308,0
|
308,0
|
|
y
Front center
|
662,0
|
673,0
|
684,0
|
