BikeWise

KTM Macina Team 291 2020

E-Bike
MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
22,7 kg
Front travel
120mm

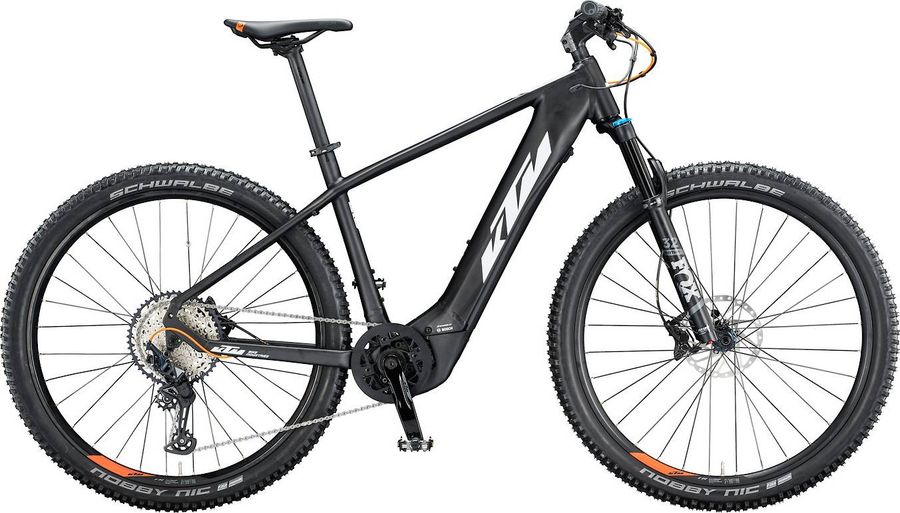

KTM Macina Team 291 2020

About the KTM Macina Team 291 2020

The KTM Macina Team 291 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 22,7 kg.

Features

The KTM Macina Team 291 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 Evo ergonomic
Pedals
VP-195E alloy
Components
Steam
KTM Team, with Kiox mount
Saddle
Ergon SM10
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Headset
KTM Team
Seatpost
KTM Team, 400mm
Handlebar
KTM Team Flat, 720mm width
Brake lever
Shimano MT420
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
KTM Team, ISIS, 170mm length
Motor
Bosch Performance CX Gen.4, 75Nm torque
Shifter
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Aluminum
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
Ambrosio E30 Trail, 32 hole
Tires
Schwalbe Nobby Nic, Performance, TLR
Spokes
Front: DT Swiss Champion, 2.0, black, Rear: DT Swiss Alpine II, 2.34, black
Rear hub
Shimano SLX M7110B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Front hub
Shimano SLX M7110B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Geometry

Size SM MD LG
a
Seat tube length
430,0
480,0
530,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
585,0
601,0
621,0
d
Head tube length
120,0
125,0
137,0
e
Head tube angle
68,5º
68,5º
68,5º
f
Rake
51,0
46,0
46,0
g
Trail
93,0
98,0
98,0
h
Wheelbase
1132,0
1143,0
1163,0
i
Chainstay length
461,0
461,0
461,0
j
Bottom bracket drop
60,0
60,0
60,0
k
Stack height
614,0
621,0
632,0
l
Reach
396,0
410,0
426,0
m
Standover height
792,0
811,0
838,0
x
Bottom bracket height
314,0
314,0
314,0
y
Front center
678,0
689,0
708,0
