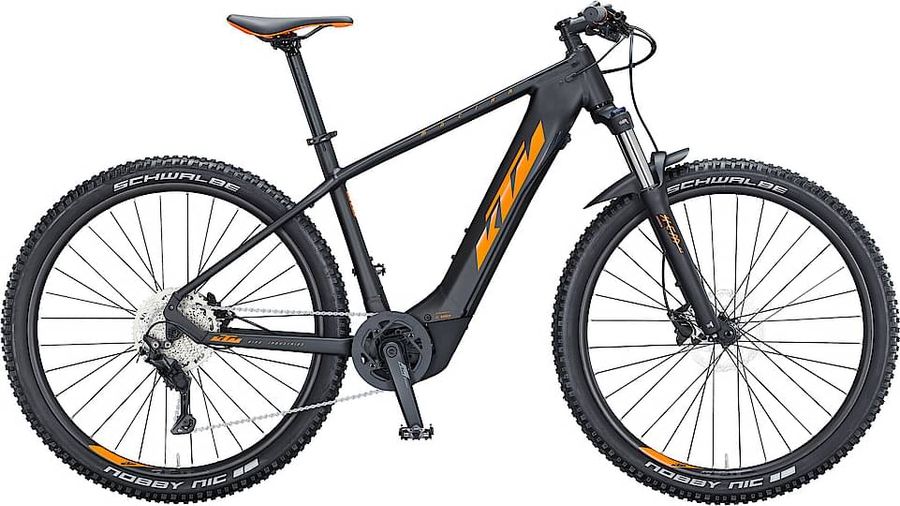

KTM MACINA TEAM 293 2021
The KTM MACINA TEAM 293 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
24,3 kg
Front travel
120mm
About the KTM MACINA TEAM 293 2021
The KTM MACINA TEAM 293 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 24,3 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Bosch PURION LCD Display
|
|---|
|
Steam
|
KTM Comp 7°
|
|---|---|
|
Saddle
|
KTM Line Sport
|
|
Battery
|
Bosch PowerTUBE 625Wh hor.
|
|
Charger
|
Bosch COMPACT Charger 2A
|
|
Headset
|
KTM Team eMTB 1.1/8"-1.5" angle limit
|
|
Seatpost
|
KTM Comp 30.9/400
|
|
Handlebar
|
KTM Comp flat 2X 720mm
|
|
Discs
|
Shimano RT30 CL 180 / 180
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
KTM COMP ISIS 170mm Q16
|
|---|---|
|
Motor
|
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
|
|
Shifter
|
Shimano Deore M4100-10 display
|
|
Bottom bracket
|
Bosch, press-fit
|
|
Chain
|
KMC e10 Sport
|
|
Cassette
|
Shimano Deore CS-M4100-10
HG
|
|
11-46T |
|
|
Frame
|
Macina MTB 29" Alloy6061; PT625Wh Bosch Gen.4 / M-0666
|
|---|---|
|
Front suspension
|
SR Suntour XCM 34
|
|
Rims
|
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
|
|---|
Geometry
| Size | MD | LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
430,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
585,0
|
601,0
|
621,0
|
|
d
Head tube length
|
120,0
|
125,0
|
137,0
|
|
e
Head tube angle
|
68,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
46,0
|
51,0
|
51,0
|
|
g
Trail
|
102,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1132,0
|
1143,0
|
1163,0
|
|
i
Chainstay length
|
461,0
|
461,0
|
461,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
614,0
|
621,0
|
632,0
|
|
l
Reach
|
396,0
|
410,0
|
426,0
|
|
m
Standover height
|
792,0
|
811,0
|
838,0
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
678,0
|
689,0
|
708,0
|
