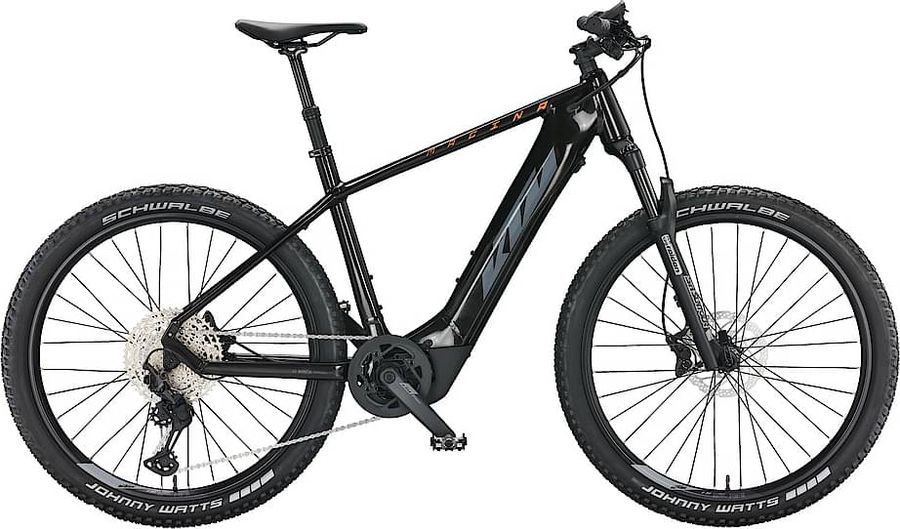

KTM MACINA TEAM 672 2022
The KTM MACINA TEAM 672 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
24,2 kg
Front travel
100mm
About the KTM MACINA TEAM 672 2022
The KTM MACINA TEAM 672 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 24,2 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Bosch INTUVIA LCD Display with Remote
|
|---|
|
Steam
|
KTM Comp 7°
|
|---|---|
|
Saddle
|
KTM Line Sport
|
|
Battery
|
Bosch PowerTUBE 625Wh hor.
|
|
Charger
|
Bosch STANDARD Charger 4A
|
|
Headset
|
KTM Team MTB 1.1/8"-1.5" angle limit
|
|
Seatpost
|
KTM Comp dropper internal
|
|
Handlebar
|
KTM Comp rizer15 700mm
|
|
Discs
|
Shimano RT30 CL 180 / EM300 CL 180
|
|
Brakes
|
Shimano BR-MT420
Hydraulic disc brake
4 piston
|
|
BL-MT402-3A SM-RT54 * SM-RT56 * SM-RT64 |
|
|
Crankset
|
KTM COMP ISIS 170mm Q16
|
|---|---|
|
Motor
|
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
|
|
Shifter
|
Shimano Deore M6100-12 display
|
|
Bottom bracket
|
Bosch, press-fit
|
|
Chain
|
Shimano CN-M6100
252 g
|
|
|
|
|
Cassette
|
Shimano Deore CS-M6100-12
HYPERGLIDE+
|
|
|
|
|
Frame
|
Macina MTB 27.5" Alloy6061; PT625Wh Bosch Gen.4 / M-1676
|
|---|---|
|
Front suspension
|
SR Suntour Raidon 34
|
|
Rims
|
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black
|
|---|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
380,0
|
430,0
|
480,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
572,0
|
582,0
|
592,0
|
|
d
Head tube length
|
120,0
|
125,0
|
137,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
89,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1,1e3
|
1111,0
|
1122,0
|
|
i
Chainstay length
|
442,0
|
442,0
|
442,0
|
|
j
Bottom bracket drop
|
47,0
|
47,0
|
47,0
|
|
k
Stack height
|
580,0
|
585,0
|
596,0
|
|
l
Reach
|
405,0
|
414,0
|
420,0
|
|
m
Standover height
|
752,0
|
763,0
|
791,0
|
|
x
Bottom bracket height
|
308,0
|
308,0
|
308,0
|
|
y
Front center
|
662,0
|
673,0
|
684,0
|
