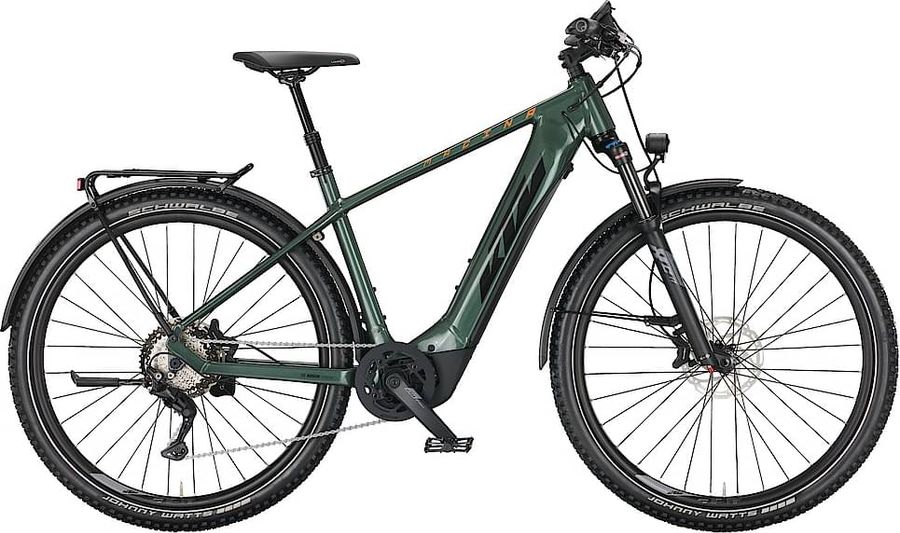

KTM MACINA TEAM 691 LFC 2022
The KTM MACINA TEAM 691 LFC 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
26,9 kg
Front travel
120mm
About the KTM MACINA TEAM 691 LFC 2022
The KTM MACINA TEAM 691 LFC 2022 is a Hardtail Trail Mountain Bike with a alloy frame. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 26,9 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Bosch INTUVIA LCD Display with Remote
|
|---|
|
Steam
|
KTM Team MTB 7°
|
|---|---|
|
Saddle
|
Selle Royal Lookin Athletic
|
|
Battery
|
Bosch PowerTUBE 625Wh hor.
|
|
Charger
|
Bosch STANDARD Charger 4A
|
|
Headset
|
KTM Team MTB 1.1/8"-1.5" angle limit
|
|
Seatpost
|
KTM Comp dropper internal
|
|
Handlebar
|
KTM Comp rizer15 700mm
|
|
Discs
|
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180
|
|
Brakes
|
Tektro HD-M535
|
|
Crankset
|
KTM COMP ISIS 170mm Q16
|
|---|---|
|
Motor
|
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
|
|
Shifter
|
Shimano Deore M5130-10 LG display
|
|
Bottom bracket
|
Bosch, press-fit
|
|
Chain
|
Shimano CN-LG500
257 g
|
|
|
|
|
Cassette
|
Shimano CS-LG600-10
LINKGLIDE
|
|
|
|
|
Frame
|
Macina MTB 29" Alloy6061; PT625Wh Bosch Gen.4 / M-0666
|
|---|---|
|
Front suspension
|
SR Suntour XCR-34
|
|
Rims
|
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
|
|---|
Geometry
| Size | MD | LG | XL |
|---|---|---|---|
|
a
Seat tube length
|
430,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
585,0
|
601,0
|
621,0
|
|
d
Head tube length
|
120,0
|
125,0
|
137,0
|
|
e
Head tube angle
|
68,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
46,0
|
51,0
|
51,0
|
|
g
Trail
|
102,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1132,0
|
1143,0
|
1163,0
|
|
i
Chainstay length
|
461,0
|
461,0
|
461,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
614,0
|
621,0
|
632,0
|
|
l
Reach
|
396,0
|
410,0
|
426,0
|
|
m
Standover height
|
792,0
|
811,0
|
838,0
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
678,0
|
689,0
|
708,0
|
