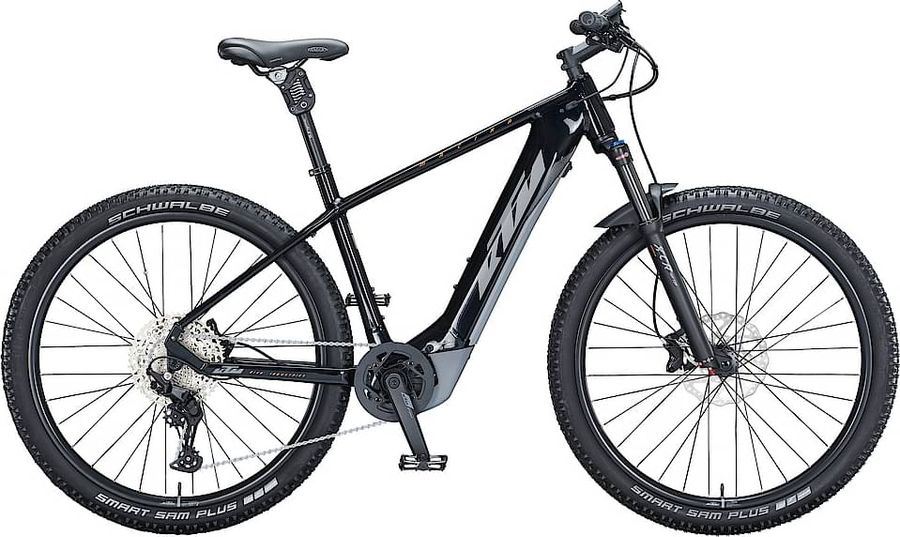

KTM MACINA TEAM XL 2021
The KTM MACINA TEAM XL 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
25,5 kg
Front travel
120mm
About the KTM MACINA TEAM XL 2021
The KTM MACINA TEAM XL 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 25,5 kg.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Bosch INTUVIA LCD Display with Remote
|
|---|
|
Steam
|
Ergotec Piranha2 6°
|
|---|---|
|
Saddle
|
Selle Royal Viaggio
|
|
Battery
|
Bosch PowerTUBE 625Wh hor.
|
|
Charger
|
Bosch STANDARD Charger 4A
|
|
Headset
|
KTM Team eMTB 1.1/8"-1.5" angle limit
|
|
Seatpost
|
bySchulz G2.ST suspension 30.9/400
|
|
Handlebar
|
Ergotec low rizer GH15 Savety 740mm
|
|
Discs
|
Tektro TR-17 2.3mm 6bolt 203 / 180
|
|
Brakes
|
Tektro HD-M730
|
|
Crankset
|
KTM COMP ISIS 170mm Q16
|
|---|---|
|
Motor
|
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
|
|
Shifter
|
Shimano Deore M5100-11 display
|
|
Bottom bracket
|
Bosch, press-fit
|
|
Chain
|
KMC e11 Sport
|
|
Cassette
|
Shimano Deore CS-M5100-11
HG
|
|
11-51T |
|
|
Frame
|
Macina MTB 29" Alloy6061; PT625Wh Bosch Gen.4 / M-0666
|
|---|---|
|
Front suspension
|
SR Suntour XCR-34
|
|
Rims
|
KTM Line - DT Swiss 370 6bolt 32H 110-15TA / Ryde Andra29 32H 622x29C / DT Alpine II 2.34 black
|
|---|
Geometry
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
|
a
Seat tube length
|
430,0
|
480,0
|
530,0
|
570,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
585,0
|
601,0
|
621,0
|
641,0
|
|
d
Head tube length
|
120,0
|
125,0
|
137,0
|
150,0
|
|
e
Head tube angle
|
68,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
46,0
|
51,0
|
51,0
|
50,0
|
|
g
Trail
|
102,0
|
89,0
|
89,0
|
90,0
|
|
h
Wheelbase
|
1132,0
|
1143,0
|
1163,0
|
1184,0
|
|
i
Chainstay length
|
461,0
|
461,0
|
461,0
|
461,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
614,0
|
621,0
|
632,0
|
645,0
|
|
l
Reach
|
396,0
|
410,0
|
426,0
|
443,0
|
|
m
Standover height
|
792,0
|
811,0
|
838,0
|
862,0
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
678,0
|
689,0
|
708,0
|
729,0
|
