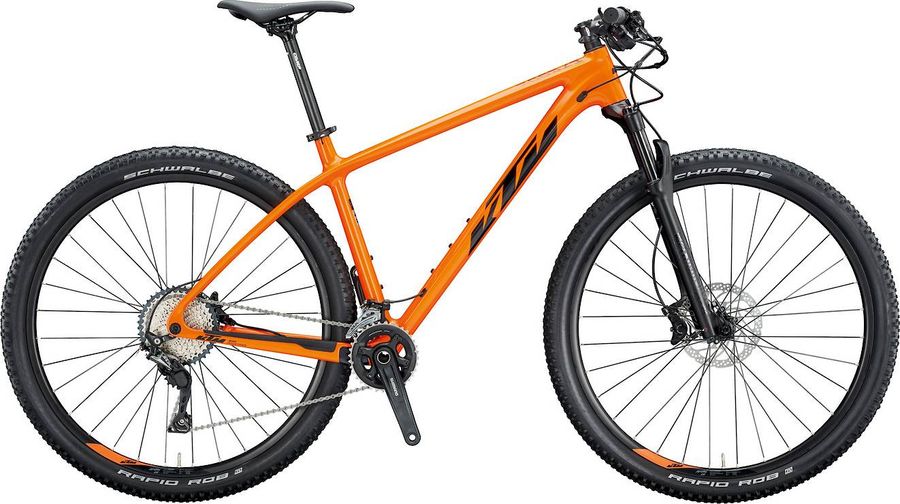

KTM Myroon Alpha 2020
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
12,8 kg
Front travel
100mm
About the KTM Myroon Alpha 2020
The KTM Myroon Alpha 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 22 gears (2x11). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 12,8 kg.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Grip
|
KTM Comp, lock-on
|
|---|
|
Steam
|
KTM Comp, 7° drop
|
|---|---|
|
Saddle
|
KTM Line MTB
|
|
Headset
|
KTM Team drop-in
|
|
Seatpost
|
KTM Comp, 400mm length
|
|
Handlebar
|
KTM Comp Flat, 720mm width
|
|
Brake lever
|
Shimano SLX M7000
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
Shimano SLX M7000
|
|---|---|
|
Shifter
|
Shimano SLX M7000, 2x11
|
|
Front derailleur
|
Shimano SLX M7020-E, sideswing
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-GS
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Chain
|
Shimano CN-HG601
257 g
|
|
|
|
|
Frame
|
Carbon Fiber
|
|---|---|
|
Front suspension
|
RockShox Judy Silver TK
Solo Air
|
|
|
|
|
Rims
|
Ryde Rival23, 32 hole
|
|---|---|
|
Tires
|
Schwalbe Rapid Rob, K-Guard
|
|
Spokes
|
DT Swiss Champion, 2.0, black
|
|
Rear hub
|
Shimano MT400B, 32 hole, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
|
|
Front hub
|
Shimano MT400B, 32 hole, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
430,0
|
480,0
|
530,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
577,0
|
597,0
|
617,0
|
637,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
71,0º
|
71,0º
|
71,0º
|
71,0º
|
|
f
Rake
|
51,0
|
52,0
|
51,0
|
51,0
|
|
g
Trail
|
75,0
|
74,0
|
75,0
|
75,0
|
|
h
Wheelbase
|
1071,0
|
1092,0
|
1113,0
|
1133,0
|
|
i
Chainstay length
|
427,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
70,0
|
70,0
|
70,0
|
70,0
|
|
k
Stack height
|
596,0
|
605,0
|
615,0
|
624,0
|
|
l
Reach
|
411,0
|
428,0
|
446,0
|
463,0
|
|
m
Standover height
|
758,0
|
769,0
|
800,0
|
829,0
|
|
x
Bottom bracket height
|
304,0
|
304,0
|
304,0
|
304,0
|
|
y
Front center
|
653,0
|
674,0
|
695,0
|
715,0
|
