KTM Myroon Comp 2020

MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
12,4 kg
Front travel
100mm

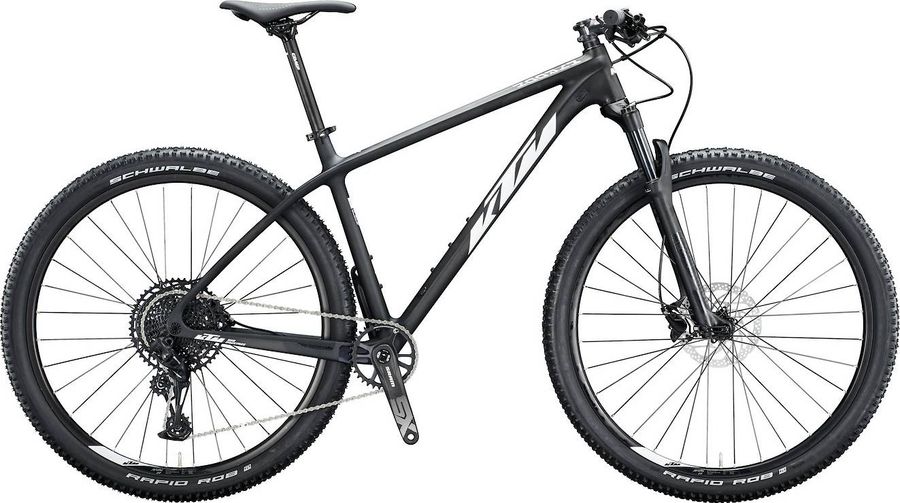

KTM Myroon Comp 2020

About the KTM Myroon Comp 2020

The KTM Myroon Comp 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 12,4 kg.

Features

The KTM Myroon Comp 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
KTM Comp, lock-on
Components
Steam
KTM Comp, 7° drop
Saddle
KTM Line MTB
Headset
KTM Team drop-in
Seatpost
KTM Comp, 400mm length
Handlebar
KTM Comp Flat, 720mm width
Brake lever
Shimano MT201
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle DUB
Shifter
SRAM SX Eagle, 12-speed, trigger
Bottom bracket
SRAM DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Carbon Fiber
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Ryde Rival23, 32 hole
Tires
Schwalbe Rapid Rob, K-Guard
Spokes
DT Swiss Champion, 2.0, black
Rear hub
Shimano MT400B, 32 hole, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Front hub
Shimano MT400B, 32 hole, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Geometry

Size XS SM MD LG
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
577,0
597,0
617,0
637,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
71,0º
71,0º
71,0º
71,0º
f
Rake
51,0
52,0
51,0
51,0
g
Trail
75,0
74,0
75,0
75,0
h
Wheelbase
1071,0
1092,0
1113,0
1133,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
70,0
70,0
70,0
70,0
k
Stack height
596,0
605,0
615,0
624,0
l
Reach
411,0
428,0
446,0
463,0
m
Standover height
758,0
769,0
800,0
829,0
x
Bottom bracket height
304,0
304,0
304,0
304,0
y
Front center
653,0
674,0
695,0
715,0
