KTM MYROON MASTER 2021

MTB Cross Country
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,3 kg
Front travel
100mm
KTM MYROON MASTER 2021

About the KTM MYROON MASTER 2021

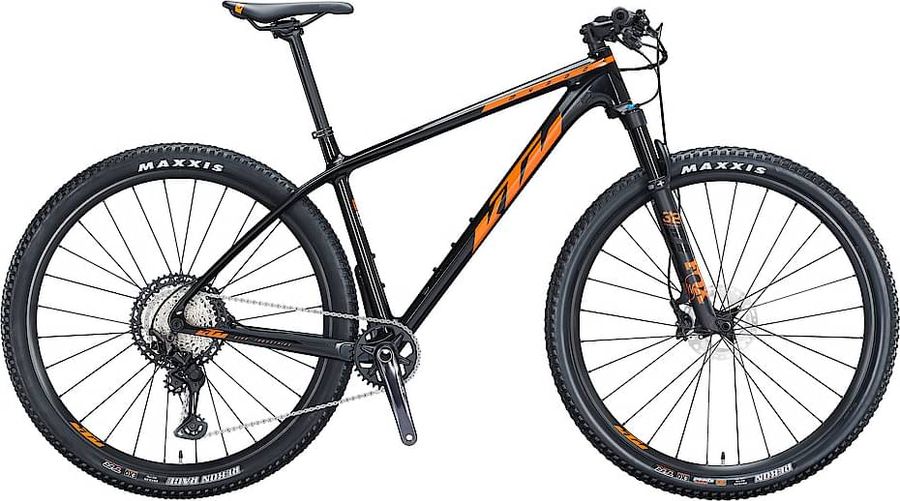

The KTM MYROON MASTER 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Its features include boost 110 , hydraulic disc brakes, and remote lockout. The bike weighs approximately 10,3 kg.

Features

The KTM MYROON MASTER 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
KTM Team MTB 7°
Saddle
Ergon SM10
Headset
KTM Team drop/in 1.1/8"-1.5"
Seatpost
KTM Team 27.2/400
Handlebar
KTM Team flat 2X 720mm
Discs
Shimano MT800 CL 160 / 160 Freeza
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano Deore XT M8100 34T
Shifter
Shimano Deore XT M8100-12
Bottom bracket
BSA, 73mm, threaded
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Myroon 29" Premium Carbon / M-7876
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
KTM Comp CC 29 CL 110-15TA / 622x25TC TLR made by DT Swiss

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
577,0
597,0
617,0
637,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
71,0º
71,0º
71,0º
71,0º
f
Rake
51,0
52,0
51,0
51,0
g
Trail
75,0
74,0
75,0
75,0
h
Wheelbase
1071,0
1092,0
1113,0
1133,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
70,0
70,0
70,0
70,0
k
Stack height
596,0
605,0
615,0
624,0
l
Reach
411,0
428,0
446,0
463,0
m
Standover height
758,0
769,0
800,0
829,0
x
Bottom bracket height
304,0
304,0
304,0
304,0
y
Front center
653,0
674,0
695,0
715,0
