KTM MYROON PRIME 2021

MTB Cross Country
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
9,6 kg
Front travel
100mm

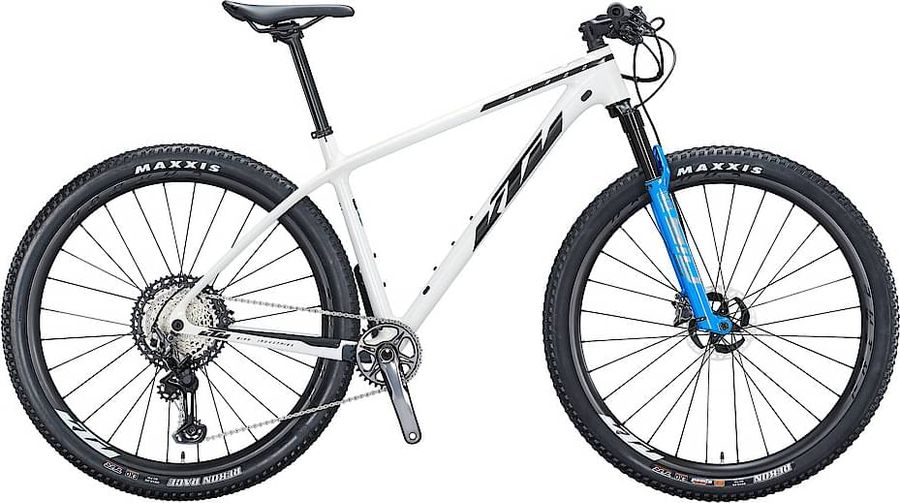

KTM MYROON PRIME 2021

About the KTM MYROON PRIME 2021

The KTM MYROON PRIME 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Its features include boost 110 , hydraulic disc brakes, and remote lockout. The bike weighs approximately 9,6 kg.

Features

The KTM MYROON PRIME 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
KTM Team MTB 7°
Saddle
Ergon SM10 Sport Men
Headset
KTM Team drop/in 1.1/8"-1.5"
Seatpost
KTM Team 27.2/400
Handlebar
KTM Team flat 2X 720mm
Discs
Shimano MT900 CL 160 / 160 Freeza
Brakes
Shimano XTR BR-M9100 312 (BL-M9100) g Hydraulic disc brake 2 piston
Average weight (g)
312 (BL-M9100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Anodizing
Caliper material
Aluminum
caliper.mono_body
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Straight
J-Kit spec for OEM
Model
BR-M9100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
K03Ti Resin pad w/o fin (w/ titanium back plate)
Pad standard
K04Ti Metal pad w/o fin (w/ titanium back plate)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Drivetrain
Crankset
Shimano XTR M9100 34T
Shifter
Shimano XTR M9100-12
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Myroon 29" Premium Carbon / M-7876
Front suspension
RockShox SID SL Ultimate DebonAir 1326 g
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Blue
Damper type
Charger Race Day
fork offset
44mm (29")
Max tire width (mm)
60
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-SIDS-ULT-C1
Name
SID SL Ultimate
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Weight based on
100mm travel W/Maxle Stealth
Weight
1326
Wheel size
29"
Wheels
Rims
KTM Prime Carbon Trail 29 CL 110-15TA / 622x30TSS TLR

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
577,0
597,0
617,0
637,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
71,0º
71,0º
71,0º
71,0º
f
Rake
51,0
52,0
51,0
51,0
g
Trail
75,0
74,0
75,0
75,0
h
Wheelbase
1071,0
1092,0
1113,0
1133,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
70,0
70,0
70,0
70,0
k
Stack height
596,0
605,0
615,0
624,0
l
Reach
411,0
428,0
446,0
463,0
m
Standover height
758,0
769,0
800,0
829,0
x
Bottom bracket height
304,0
304,0
304,0
304,0
y
Front center
653,0
674,0
695,0
715,0
