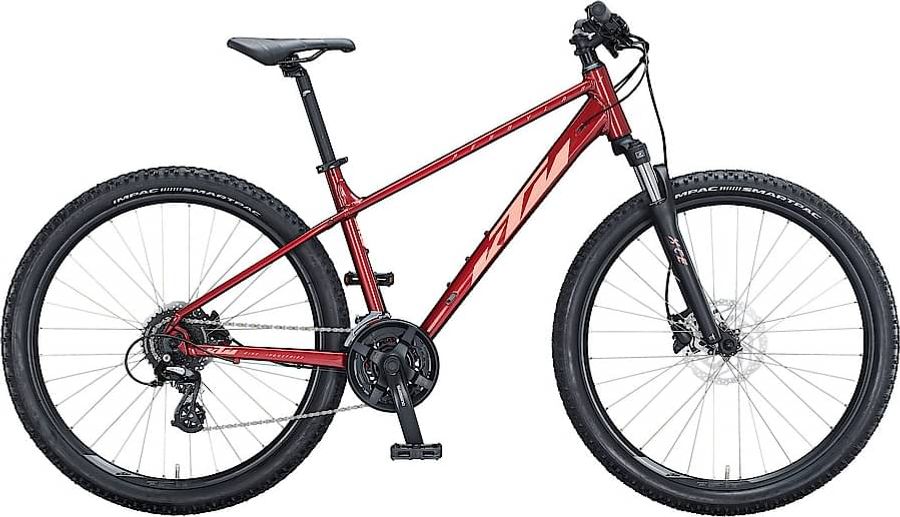

KTM PENNY LANE DISC 272 2021
The KTM PENNY LANE DISC 272 2021 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,7 kg
Front travel
80mm
About the KTM PENNY LANE DISC 272 2021
The KTM PENNY LANE DISC 272 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 14,7 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
KTM Line 12°
|
|---|---|
|
Saddle
|
Selle Italia, X3 XP LADY BOOST Superflow
|
|
Headset
|
Ritchey Zero Logic PRESS FIT 1-1/8" 15mm cover
|
|
Seatpost
|
KTM Line 1B 27.2
|
|
Handlebar
|
KTM Line Riser 15 660mm
|
|
Discs
|
Shimano RT10 CL 180 / 160
|
|
Brakes
|
Shimano EF505 Hidráulico
|
|
Crankset
|
Shimano TY301 42-34-24
|
|---|---|
|
Cassette
|
Shimano CS-HG31-8
HG
|
|
11-32T 11-34T |
|
|
Chain
|
Shimano CN-HG40
324 g
|
|
|
|
|
Frame
|
27.5" Alloy 6061 MTB M1100-L
|
|---|---|
|
Front suspension
|
SR Suntour XCE 28
|
|
Rims
|
KTM Line - Shimano HB-TX505 CL 32H QR / KTM 27.5" 36H ROCKY 22 RX 584x22 / RM 2.0 INOX silver
|
|---|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
320,0
|
370,0
|
420,0
|
470,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
565,0
|
570,0
|
590,0
|
610,0
|
|
d
Head tube length
|
110,0
|
125,0
|
140,0
|
160,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
39,0
|
39,0
|
39,0
|
39,0
|
|
g
Trail
|
102,0
|
102,0
|
102,0
|
102,0
|
|
h
Wheelbase
|
1076,0
|
1082,0
|
1104,0
|
1125,0
|
|
i
Chainstay length
|
440,0
|
440,0
|
440,0
|
440,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
560,0
|
574,0
|
587,0
|
606,0
|
|
l
Reach
|
395,0
|
396,0
|
412,0
|
426,0
|
|
m
Standover height
|
719,0
|
729,0
|
756,0
|
788,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
640,0
|
646,0
|
668,0
|
689,0
|
