KTM PENNY LANE STREET 27 2022
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
16,2 kg
Front travel
80mm

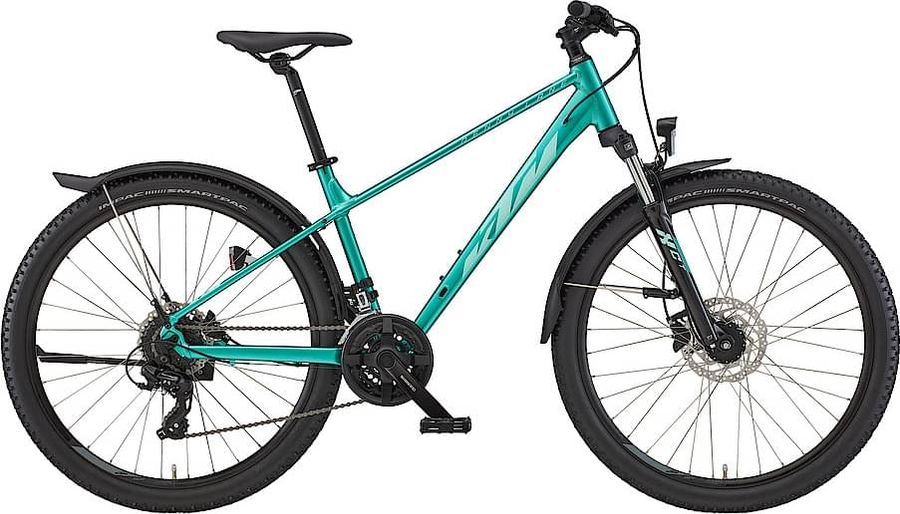

About the KTM PENNY LANE STREET 27 2022
The KTM PENNY LANE STREET 27 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 16,2 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
KTM LINE 15°
|
|---|---|
|
Saddle
|
KTM LINE SPORT
|
|
Headset
|
RITCHEY Zero Logic PRESS FIT 1-1/8"
|
|
Seatpost
|
KTM LINE 27.2
|
|
Handlebar
|
KTM LINE Riser 12 680-720mm
|
|
Discs
|
Shimano Altus RT10 CL 180 / Altus RT10 CL 160
|
|
Brakes
|
Shimano EF505 Hidráulico
|
|
Crankset
|
Shimano Tourney TY301-3 / 42-34-22T
|
|---|---|
|
Cassette
|
Shimano TourneyTX CS-HG200-8
|
|
Chain
|
KMC Z8
|
|
Frame
|
27.5" Alloy L6061 MTB STREET M0522-L
|
|---|---|
|
Front suspension
|
SR Suntour XCT DS
|
|
Rims
|
KTM Line - Shimano DH-3D37 CL 32H 100 QR / KTM 27.5" Sport 32H / Pillar 2.0 INOX silver
|
|---|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
370,0
|
420,0
|
470,0
|
520,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
569,0
|
589,0
|
609,0
|
629,0
|
|
d
Head tube length
|
125,0
|
140,0
|
160,0
|
180,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
39,0
|
39,0
|
39,0
|
38,0
|
|
g
Trail
|
102,0
|
102,0
|
102,0
|
103,0
|
|
h
Wheelbase
|
1081,0
|
1103,0
|
1124,0
|
1146,0
|
|
i
Chainstay length
|
439,0
|
439,0
|
439,0
|
439,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
573,0
|
586,0
|
605,0
|
624,0
|
|
l
Reach
|
395,0
|
411,0
|
425,0
|
440,0
|
|
m
Standover height
|
728,0
|
755,0
|
787,0
|
818,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
646,0
|
668,0
|
689,0
|
711,0
|
