KTM PROWLER 1964 2021

MTB Enduro
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
18,2 kg
Front travel
160mm
Rear travel
150mm

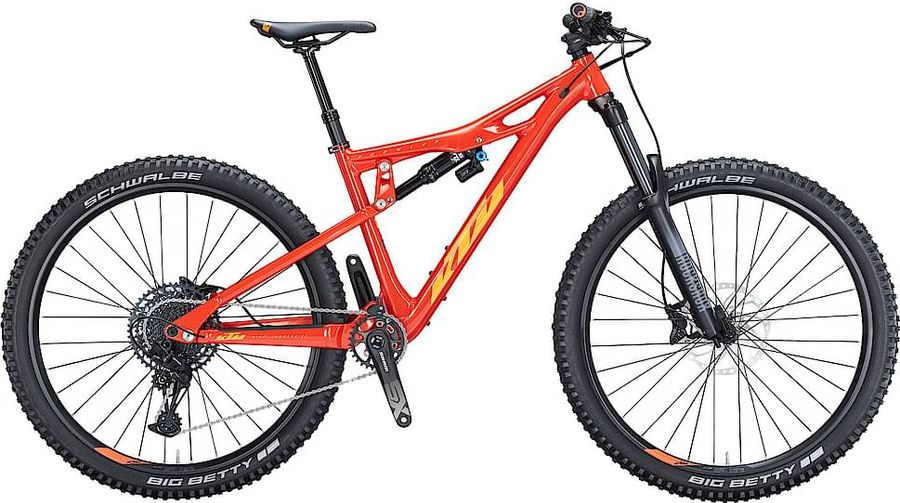

KTM PROWLER 1964 2021

About the KTM PROWLER 1964 2021

The KTM PROWLER 1964 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 18,2 kg.

Features

The KTM PROWLER 1964 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
KTM Team Trail35
Saddle
Ergon SM10
Headset
KTM Team drop/in 1.1/8"-1.5"
Seatpost
KTM Comp dropper internal
Handlebar
KTM Team Trail35 rizer25 800mm
Discs
Shimano RT64 CL 203 / 180
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
SRAM SX Eagle DUB 30T
Shifter
SRAM SX Eagle Trigger
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
Prowler 29" Alloy6061 triplebutted SLL-LT 150mm / M-9616
Front suspension
RockShox 35 Silver TK Coil, Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-35S-TK-A1
Name
35 Silver TK
Spring
Coil, Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black

Geometry

Size MD LG XL
a
Seat tube length
430,0
450,0
480,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
586,0
606,0
636,0
d
Head tube length
90,0
105,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
50,0
51,0
50,0
g
Trail
112,0
111,0
112,0
h
Wheelbase
1186,0
1209,0
1241,0
i
Chainstay length
432,0
432,0
432,0
j
Bottom bracket drop
27,0
27,0
27,0
k
Stack height
606,0
620,0
634,0
l
Reach
436,0
452,0
479,0
m
Standover height
806,0
806,0
806,0
x
Bottom bracket height
347,0
347,0
347,0
y
Front center
755,0
778,0
810,0
