KTM PROWLER MASTER 2022

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,2 kg
Front travel
160mm
Rear travel
150mm

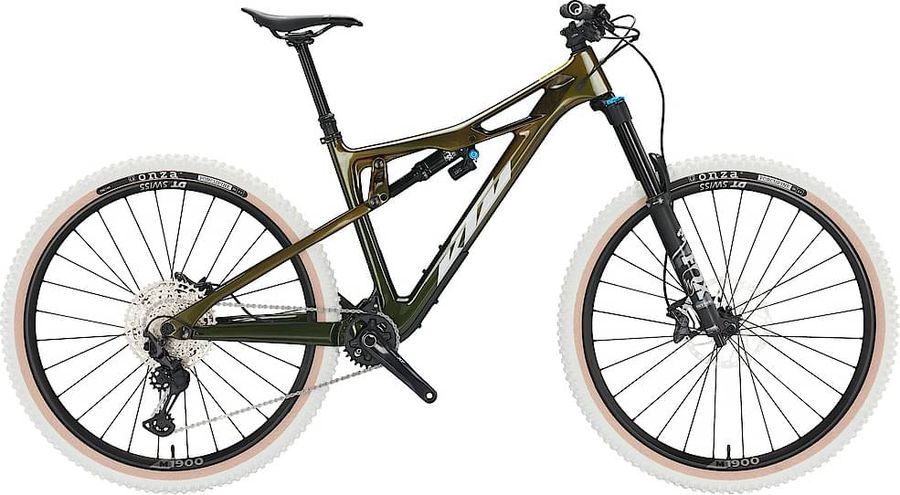

KTM PROWLER MASTER 2022

About the KTM PROWLER MASTER 2022

The KTM PROWLER MASTER 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,2 kg.

Features

The KTM PROWLER MASTER 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE10 Evo ergonomic
Components
Steam
KTM Team Trail35
Saddle
Selle San Marco GND Open Fit Supercomfort Manganese Rails
Headset
KTM Team drop/in 1.1/8"-1.5"
Seatpost
KTM Team dropper internal
Handlebar
KTM Team Trail35 rizer25 800mm
Discs
Shimano RT64 CL 203 / RT64 CL 180
Brake lever
Shimano Deore M6100
Brakes
Shimano Deore BR-M6100 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Color
Secondary color
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad standard
G03S Resin
Pad standard
J03A Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
SM-RT64
SM-RT66
Drivetrain
Crankset
Shimano Deore XT M8120 30T
Shifter
Shimano Deore XT M8100-12
Chain guide
Upper slider
Bottom bracket
BSA, 73mm, threaded
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Prowler 29" Performance Carbon SLL-LT 150mm / M-8606
Front suspension
Fox 36 Float Rhythm
Rear suspension
Fox Float X Performance
Wheels
Rims
DT Swiss M1900 29 CL 110/15TA 622x30TC
Tires
Onza Porcupine, White Edition, TLR, 29" x 2.4"
Spokes
DT Swiss M1900 wheelset
Rear hub
DT Swiss M1900 wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Front hub
DT Swiss M1900 wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver

Geometry

Size MD LG XL
a
Seat tube length
430,0
450,0
480,0
b
Seat tube angle
76,0º
76,0º
76,0º
c
Top tube length
586,0
606,0
636,0
d
Head tube length
90,0
105,0
120,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
50,0
51,0
50,0
g
Trail
112,0
111,0
112,0
h
Wheelbase
1186,0
1209,0
1241,0
i
Chainstay length
432,0
432,0
432,0
j
Bottom bracket drop
27,0
27,0
27,0
k
Stack height
606,0
620,0
634,0
l
Reach
436,0
452,0
479,0
m
Standover height
806,0
806,0
806,0
x
Bottom bracket height
347,0
347,0
347,0
y
Front center
755,0
778,0
810,0
