KTM SCARP 294 2021

MTB Cross Country
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,7 kg
Front travel
100mm

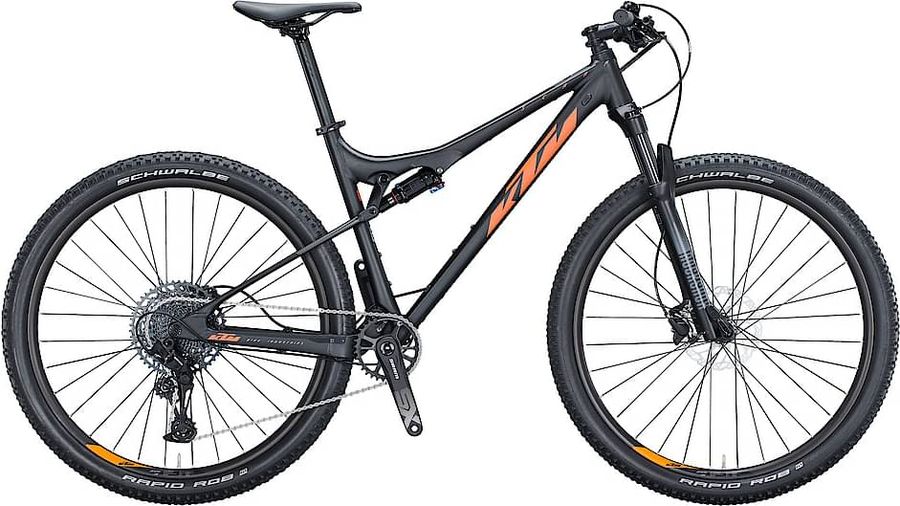

KTM SCARP 294 2021

About the KTM SCARP 294 2021

The KTM SCARP 294 2021 is a Full suspension Cross Country Mountain Bike with a alloy frame. Its features include boost 110 , hydraulic disc brakes, and remote lockout. The bike weighs approximately 14,7 kg.

Features

The KTM SCARP 294 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
KTM Comp 7°
Saddle
KTM Line Sport
Headset
KTM Team drop/in 1.1/8"-1.5"
Seatpost
KTM Comp 30.9/400
Handlebar
KTM Comp flat 2X 720mm
Discs
Shimano RT54 CL 180 / 160
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX Eagle DUB 34T
Shifter
SRAM SX Eagle Trigger
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
Scarp 29" Alloy6061 triplebutted; SLL90mm / M-7936
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RL 215 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
430
Model
RS-MNR-RL-C2
Name
Monarch RL
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
KTM Line - Shimano MT400B CL 32H 110-15TA / Ryde Rival26 32H 622x26C / DT Champion 2.0 black

Geometry

Size MD LG XL
a
Seat tube length
430,0
480,0
530,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
596,0
616,0
636,0
d
Head tube length
105,0
115,0
125,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
51,0
51,0
50,0
g
Trail
82,0
82,0
83,0
h
Wheelbase
1125,0
1145,0
1166,0
i
Chainstay length
437,0
437,0
437,0
j
Bottom bracket drop
45,0
45,0
45,0
k
Stack height
599,0
608,0
617,0
l
Reach
429,0
446,0
464,0
m
Standover height
771,0
768,0
767,0
x
Bottom bracket height
329,0
329,0
329,0
y
Front center
692,0
712,0
733,0
