KTM SCARP ELITE 2022

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,1 kg
Front travel
100mm
Rear travel
95mm
KTM SCARP ELITE 2022

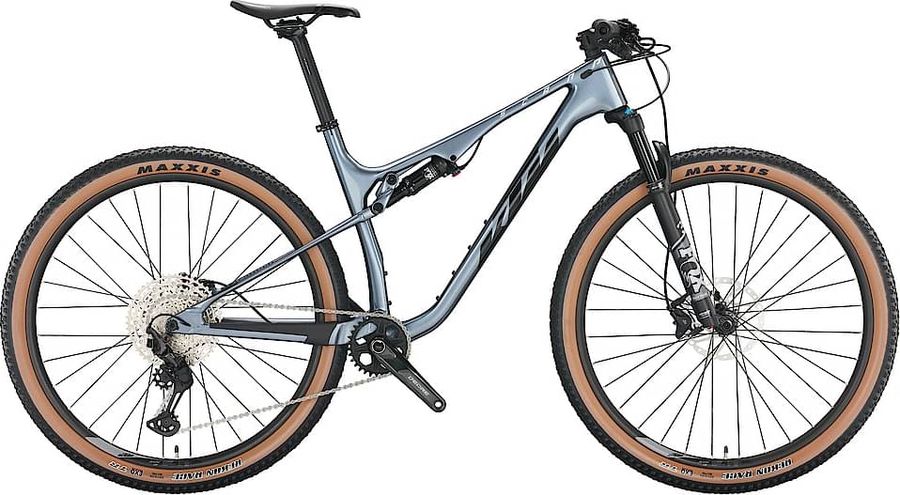

About the KTM SCARP ELITE 2022

The KTM SCARP ELITE 2022 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 13,1 kg.

Features

The KTM SCARP ELITE 2022 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
KTM Team silicone
Components
Steam
KTM Team MTB 7°
Saddle
Selle San Marco RND Manganese Rails
Headset
KTM Team drop/in 1.1/8"-1.5"
Seatpost
KTM Team 30.9/400
Handlebar
KTM Team flat 2X 720mm
Discs
Shimano RT64 CL 180 / RT64 CL 160
Brake lever
Shimano M4100
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano Deore M6120 32T
Shifter
Shimano Deore M6100-12
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Scarp 29" Premium Carbon-Alloy rear SLL95mm / M-0916
Rear suspension
Fox Float DPS Performance Elite
Front suspension
Fox 32 Float Rhythm
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival26 32H 622x26C / DT Champion 2.0 black
Tires
Maxxis Rekon Race, EXO, TR, 29" x 2.25"
Spokes
DT Swiss Champion 2.0
Rear hub
Shimano MT410, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Front hub
Shimano MT410, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
577,0
597,0
617,0
637,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
102,0
102,0
102,0
102,0
h
Wheelbase
1121,0
1142,0
1163,0
1184,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
583,0
593,0
602,0
611,0
l
Reach
420,0
437,0
455,0
472,0
m
Standover height
777,0
777,0
777,0
783,0
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
693,0
714,0
735,0
756,0
