KTM SCARP MT MASTER 2022

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
12,2 kg
Front travel
120mm
Rear travel
115mm

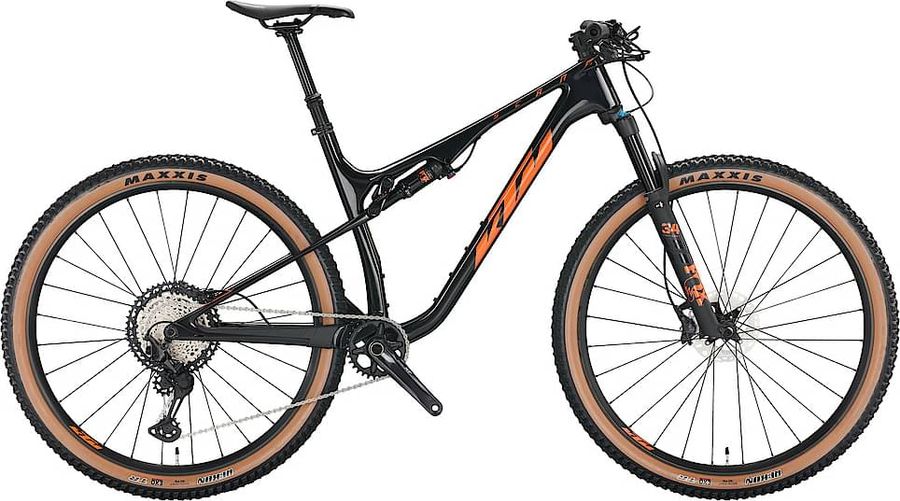

KTM SCARP MT MASTER 2022

About the KTM SCARP MT MASTER 2022

The KTM SCARP MT MASTER 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,2 kg.

Features

The KTM SCARP MT MASTER 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
KTM Team silicone
Components
Steam
KTM Team MTB 7°
Saddle
Selle San Marco RND Manganese Rails
Headset
KTM Team drop/in 1.1/8"-1.5"
Seatpost
KTM Team dropper internal
Handlebar
KTM Team flat 2X 740mm
Discs
Shimano MT800 CL 160 / MT800 CL 160 freeza
Brake lever
Shimano Deore XT M8100
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano Deore XT M8120 32T
Shifter
Shimano Deore XT M8100-12
Bottom bracket
BSA, 73mm, threaded
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Scarp 29" Premium Carbon SLL115mm / M-1926
Rear suspension
Fox Float DPS Performance Elite
Front suspension
Fox 34 Float Performance SC
Wheels
Rims
KTM Comp Trail 29 CL 110/15TA / 622x30TC made by DT Swiss
Tires
Maxxis Rekon, EXO, TR, 29" x 2.4"
Spokes
KTM Comp Trail wheelset
Rear hub
KTM Comp Trail wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Front hub
KTM Comp Trail wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
580,0
600,0
620,0
640,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
45,0
44,0
45,0
44,0
g
Trail
110,0
111,0
110,0
111,0
h
Wheelbase
1128,0
1149,0
1171,0
1192,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
590,0
600,0
609,0
619,0
l
Reach
410,0
428,0
445,0
463,0
m
Standover height
787,0
787,0
787,0
793,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
699,0
720,0
742,0
763,0
