KTM SCARP MT PRO 2021

MTB Trail
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,6 kg
Front travel
120mm

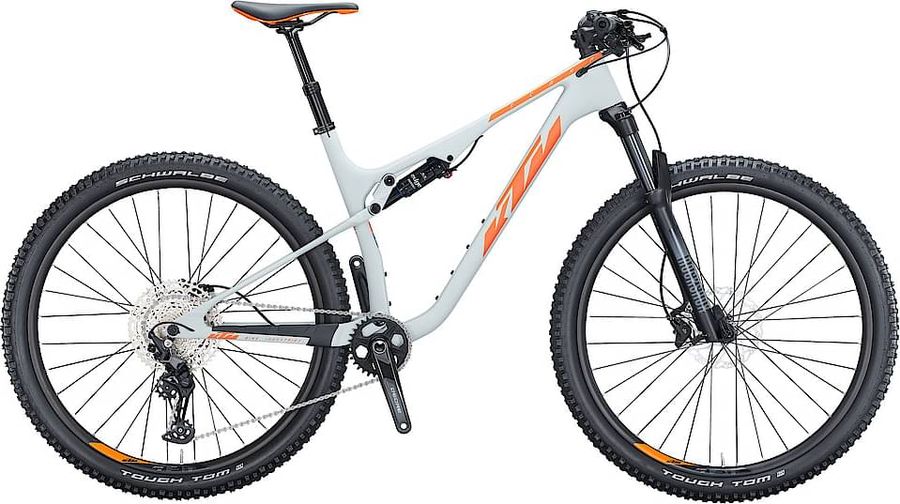

KTM SCARP MT PRO 2021

About the KTM SCARP MT PRO 2021

The KTM SCARP MT PRO 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes. The bike weighs approximately 14,6 kg.

Features

The KTM SCARP MT PRO 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
KTM Team MTB 7°
Saddle
KTM Line Sport
Headset
KTM Team drop/in 1.1/8"-1.5"
Seatpost
KTM Comp dropper internal
Handlebar
KTM Team flat 2X 740mm
Discs
Shimano RT54 CL 180 / 160
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano MT511 32T
Shifter
Shimano Deore M6100-12
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Scarp 29" Premium Carbon-Alloy rear SLL115mm / M-0916
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
SR Suntour Edge R
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
430,0
480,0
530,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
580,0
600,0
620,0
640,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
45,0
44,0
45,0
44,0
g
Trail
110,0
111,0
110,0
111,0
h
Wheelbase
1128,0
1149,0
1171,0
1192,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
590,0
600,0
609,0
619,0
l
Reach
410,0
428,0
445,0
463,0
m
Standover height
787,0
787,0
787,0
793,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
699,0
720,0
742,0
763,0
