KTM ULTRA 1964 COMP 29 2021

MTB Cross Country
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,4 kg
Front travel
100mm

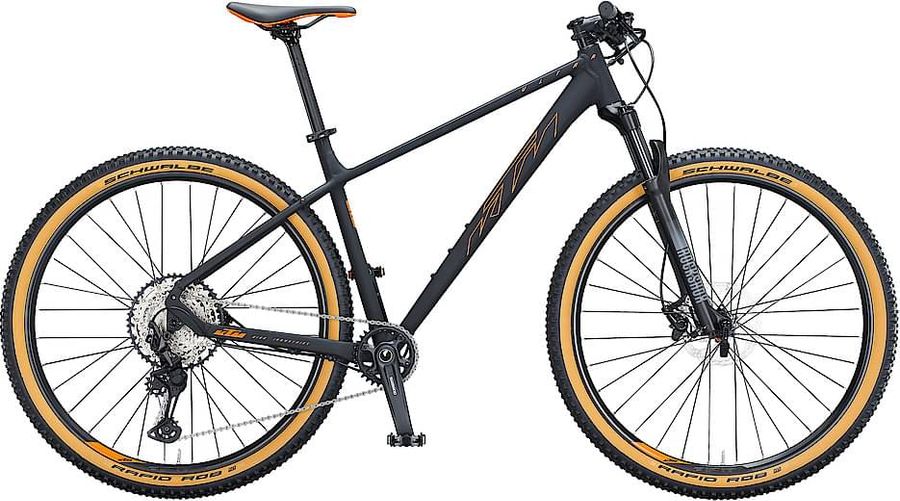

KTM ULTRA 1964 COMP 29 2021

About the KTM ULTRA 1964 COMP 29 2021

The KTM ULTRA 1964 COMP 29 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 13,4 kg.

Features

The KTM ULTRA 1964 COMP 29 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
KTM Comp 7°
Saddle
KTM SPORT
Headset
KTM Team drop it 1 1/8"-1.5" 15mm cover
Seatpost
KTM Comp 27,2
Handlebar
KTM Comp Flat Top 720mm
Discs
Shimano RT30 CL 180 / 160
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano Deore M61001 32
Shifter
Shimano Deore SL-M6100
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
29" Alloy 6061 MTB Ultra TB M1306
Front suspension
RockShox Judy TK
Wheels
Rims
KTM Line - Shimano HB-MT410 CL 32H TA / KTM 29" 32H ROCKY 22 RX 622x22 / RM 2.0, INOX black

Geometry

Size SM MD LG XL XXL
a
Seat tube length
380,0
430,0
480,0
530,0
570,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
572,0
592,0
612,0
632,0
647,0
d
Head tube length
100,0
110,0
125,0
140,0
160,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
44,0
44,0
44,0
44,0
45,0
g
Trail
97,0
97,0
97,0
97,0
96,0
h
Wheelbase
1085,0
1106,0
1128,0
1149,0
1166,0
i
Chainstay length
437,0
437,0
437,0
437,0
437,0
j
Bottom bracket drop
70,0
70,0
70,0
70,0
70,0
k
Stack height
602,0
611,0
626,0
639,0
658,0
l
Reach
398,0
416,0
432,0
448,0
457,0
m
Standover height
759,0
766,0
796,0
828,0
857,0
x
Bottom bracket height
304,0
304,0
304,0
304,0
304,0
y
Front center
657,0
678,0
700,0
721,0
738,0
