KTM Ultra Evo 2020

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,2 kg
Front travel
130mm
KTM Ultra Evo 2020

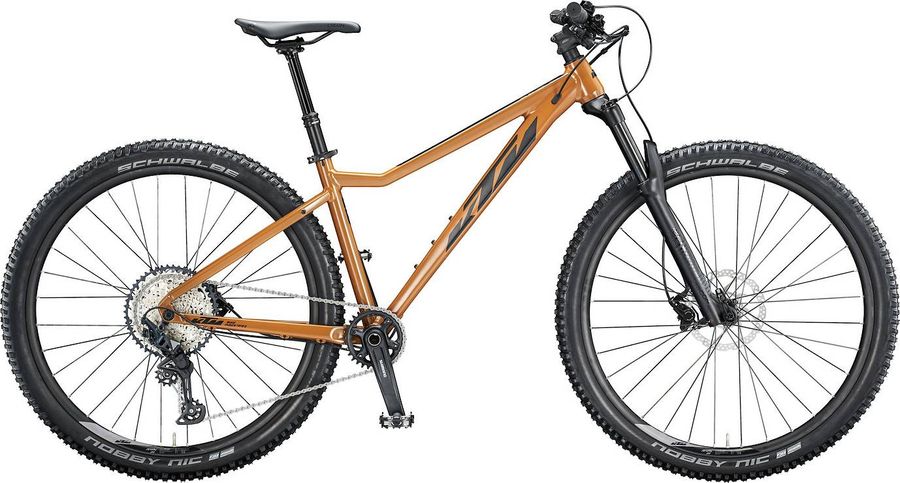

About the KTM Ultra Evo 2020

The KTM Ultra Evo 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,2 kg.

Features

The KTM Ultra Evo 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
KTM Comp, lock-on
Pedals
VP-195E alloy
Components
Steam
KTM Team Trail, 35mm
Saddle
Ergon SM10
Headset
KTM Team drop-in
Seatpost
KTM Comp dropper
Handlebar
KTM Comp Trail, 35mm diameter, 15mm rise, 760mm width
Brake lever
Shimano MT400
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano MT610
Shifter
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Aluminum
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Ryde Rival30, 32 hole
Tires
Schwalbe Nobby Nic, Performance, TLR
Spokes
DT Swiss Champion, 2.0, black
Rear hub
Shimano MT510B, 32 hole, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Front hub
Shimano MT510B, 32 hole, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear

Geometry

Size XS SM MD LG XL
a
Seat tube length
360,0
410,0
460,0
510,0
550,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
75,0º
c
Top tube length
574,0
594,0
614,0
634,0
654,0
d
Head tube length
90,0
90,0
105,0
120,0
140,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
52,0
52,0
51,0
51,0
52,0
g
Trail
106,0
106,0
107,0
107,0
106,0
h
Wheelbase
1137,0
1157,0
1179,0
1202,0
1225,0
i
Chainstay length
434,0
434,0
434,0
434,0
434,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
578,0
578,0
592,0
606,0
624,0
l
Reach
417,0
437,0
454,0
470,0
485,0
m
Standover height
713,0
732,0
763,0
796,0
824,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
710,0
730,0
752,0
774,0
797,0
