KTM ULTRA EVO DIM 2021

MTB Trail
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,7 kg
Front travel
130mm

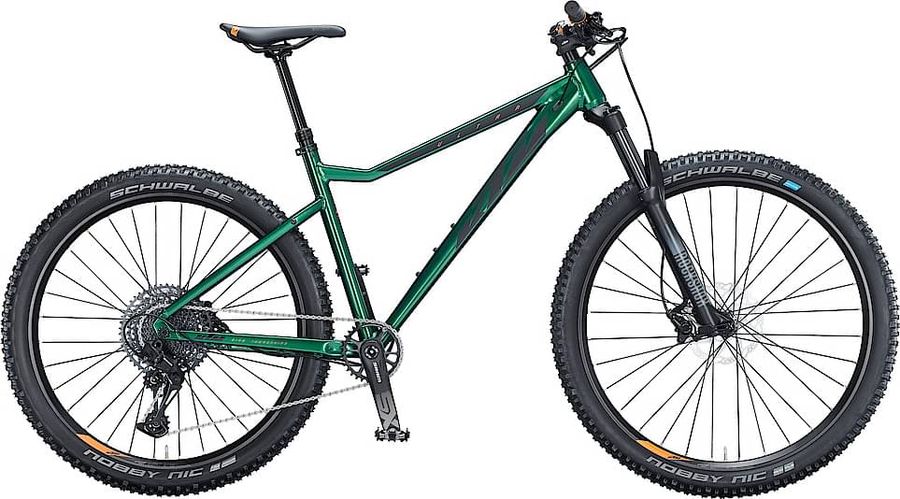

KTM ULTRA EVO DIM 2021

About the KTM ULTRA EVO DIM 2021

The KTM ULTRA EVO DIM 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 13,7 kg.

Features

The KTM ULTRA EVO DIM 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
KTM Team Trail Zero
Saddle
Ergon SM10
Headset
KTM Team drop it 1 1/8"-1.5" 15mm cover
Seatpost
KTM Comp DP 30,9
Handlebar
KTM Comp Trail Riser 15 760
Discs
Shimano RT54 CL 180 / 180
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX EAGLE DUB 32
Shifter
SRAM SX EAGLE TRIGGER SHIFTER
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
29" Alloy 6061 MTB ULTRA EVO TB M0346
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
KTM Line - Shimano HB-MT400 CL 32H TA / KTM 29" 32H ENDURO PLUS RX 622x30 / RM 2.0, INOX black

Geometry

Size SM MD LG XL XXL
a
Seat tube length
360,0
410,0
460,0
510,0
550,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
576,0
596,0
616,0
636,0
656,0
d
Head tube length
90,0
90,0
105,0
120,0
140,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
65,0º
f
Rake
39,0
34,0
39,0
40,0
39,0
g
Trail
132,0
137,0
132,0
130,0
132,0
h
Wheelbase
1137,0
1157,0
1179,0
1202,0
1225,0
i
Chainstay length
434,0
434,0
434,0
434,0
434,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
583,0
584,0
598,0
612,0
630,0
l
Reach
411,0
437,0
446,0
462,0
477,0
m
Standover height
709,0
727,0
758,0
790,0
818,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
710,0
730,0
752,0
774,0
797,0
