KTM ULTRA EVO DIM 2022

MTB Cross Country
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29" / 27,5"
Suspension type
Hardtail
Weight
13,7 kg
Front travel
130mm

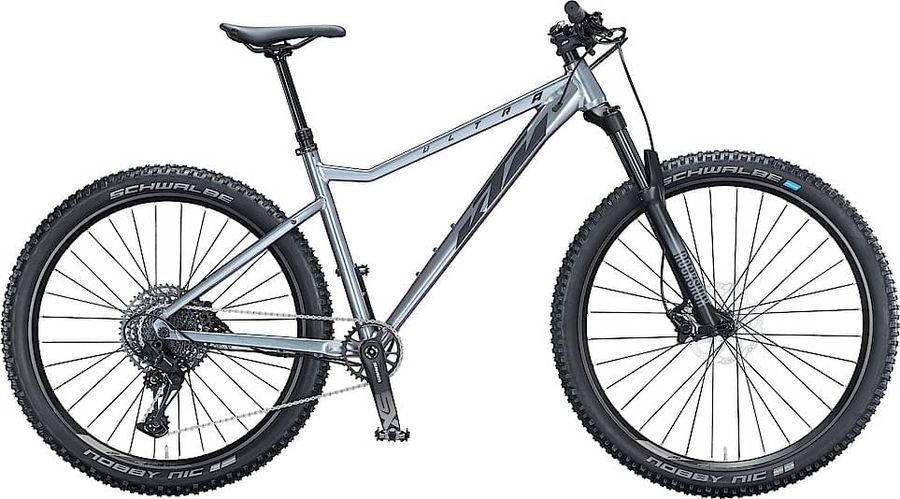

KTM ULTRA EVO DIM 2022

About the KTM ULTRA EVO DIM 2022

The KTM ULTRA EVO DIM 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 13,7 kg.

Features

The KTM ULTRA EVO DIM 2022 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
KTM Comp MTB
Pedals
KTM Team MTB
Components
Steam
KTM TEAM Trail Zero
Saddle
KTM COMP MTB
Headset
KTM Team Trekking 1 1/8-1.5, 5mm
Seatpost
KTM COMP DP 30
Handlebar
KTM COMP Trail Riser 15 760
Discs
Shimano Deore RT54 CL 180 / Deore RT54 CL 180
Brake lever
Shimano MT401
Brakes
Shimano BR-MT410 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black (SHIMANO logo)
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT410
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX EAGLE BOOST DUB 175 / 32T
Shifter
SRAM SX EAGLE TRIGGER SHIFTER
Bottom bracket
SRAM DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
29" Alloy 6061 MTB ULTRA EVO TB M0346
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
KTM Line - Shimano Acera HB-MT400 CL 32H 110 TA / KTM 27,5"/28" Enduro 32H / Richman 2.0 INOX black
Tires
Schwalbe Nobby Nic, Performance, folding, 29" x 2.35" (front), 27.5" x 2.5" (rear)
Spokes
Richman 2.0 INOX
Rear hub
Shimano Acera MT400, 15x110mm Boost front, 12x148mm Boost rear with HG driver
Front hub
Shimano Acera MT400, 15x110mm Boost front, 12x148mm Boost rear with HG driver

Geometry

Size MD LG XL
a
Seat tube length
410,0
460,0
510,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
595,0
615,0
635,0
d
Head tube length
90,0
105,0
120,0
e
Head tube angle
65,0º
65,0º
65,0º
f
Rake
34,0
39,0
40,0
g
Trail
137,0
132,0
130,0
h
Wheelbase
1156,0
1178,0
1201,0
i
Chainstay length
433,0
433,0
433,0
j
Bottom bracket drop
60,0
60,0
60,0
k
Stack height
583,0
597,0
611,0
l
Reach
436,0
445,0
461,0
m
Standover height
726,0
757,0
789,0
x
Bottom bracket height
314,0
314,0
314,0
y
Front center
730,0
752,0
774,0
