KTM ULTRA FLITE 29 2022

MTB Cross Country
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,3 kg

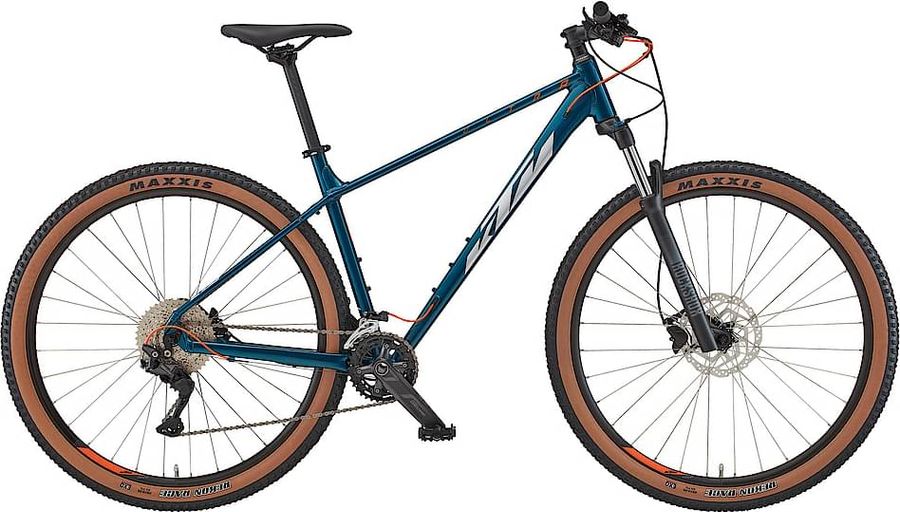

KTM ULTRA FLITE 29 2022

About the KTM ULTRA FLITE 29 2022

The KTM ULTRA FLITE 29 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 14,3 kg.

Features

The KTM ULTRA FLITE 29 2022 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
KTM COMP 7°
Saddle
KTM LINE SPORT
Headset
RITCHEY Zero Logic PRESS FIT 1-1/8"
Seatpost
KTM COMP 27.2
Handlebar
KTM COMP Riser 12 720-740mm
Discs
Shimano Altus RT10 CL 180 / Altus RT10 CL 160
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano Deore M4100-2 / 36-26T w/BB
Shifter
Shimano Deore M5100
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
29" Alloy 6061 MTB M1110
Front suspension
RockShox Judy TK
Wheels
Rims
KTM Line - Shimano HB-MT200 CL 32H 100 QR / KTM 28" Sport 32H / Pillar 2.0 INOX silver

Geometry

Size MD LG XL XXL
a
Seat tube length
430,0
480,0
530,0
570,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
591,0
611,0
631,0
646,0
d
Head tube length
110,0
125,0
140,0
160,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
44,0
44,0
44,0
45,0
g
Trail
97,0
97,0
97,0
96,0
h
Wheelbase
1105,0
1127,0
1148,0
1165,0
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
70,0
70,0
70,0
70,0
k
Stack height
610,0
625,0
638,0
657,0
l
Reach
415,0
431,0
447,0
456,0
m
Standover height
765,0
795,0
827,0
856,0
x
Bottom bracket height
304,0
304,0
304,0
304,0
y
Front center
678,0
700,0
721,0
738,0
