KTM ULTRA FUN 27 2021

MTB Cross Country
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,5 kg
Front travel
100mm

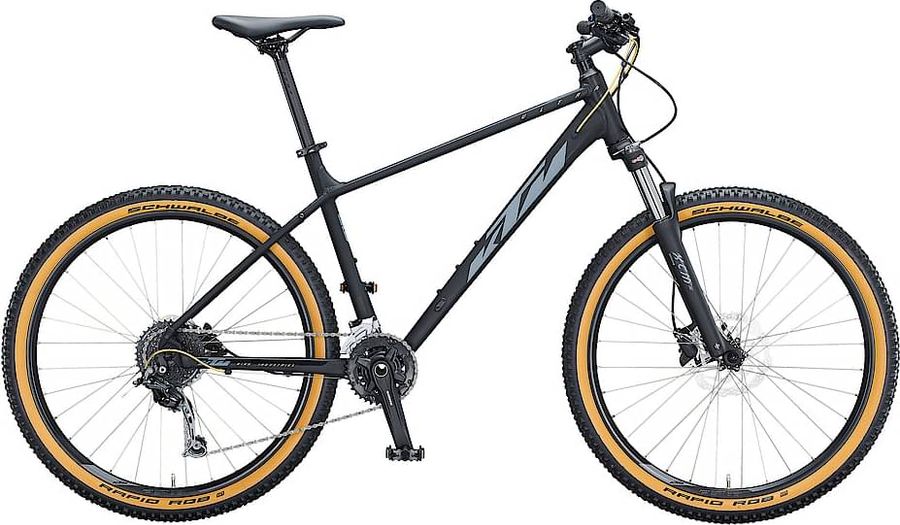

KTM ULTRA FUN 27 2021

About the KTM ULTRA FUN 27 2021

The KTM ULTRA FUN 27 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 14,5 kg.

Features

The KTM ULTRA FUN 27 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
KTM Comp 7°
Saddle
KTM MTB
Headset
Ritchey Zero Logic PRESS FIT 1-1/8" 15mm cover
Seatpost
KTM Comp 27,2
Handlebar
KTM Comp Riser 15 680mm
Discs
Shimano RT10 CL 180 / 160
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano MT2102 36-22
Shifter
Shimano Alivio SL-M3100
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
Shimano CN-HG53 299 g
Average weight (g)
299
Chromizing treatment roller link pin
Model
CN-HG53
Pin link plate
Gray
Roller link plate
Brown
Type
HG 9-speed
Frameset
Frame
27.5" Alloy 6061 MTB M1100
Front suspension
SR Suntour XCM-RL
Wheels
Rims
KTM Line - Shimano HB-TX505 CL 32H QR / KTM 27.5" 32H ROCKY 22 RX 584x22 / RM 2.0 INOX silver

Geometry

Size SM MD LG
a
Seat tube length
380,0
430,0
480,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
572,0
592,0
612,0
d
Head tube length
110,0
125,0
140,0
e
Head tube angle
68,0º
68,0º
68,0º
f
Rake
39,0
39,0
39,0
g
Trail
102,0
102,0
102,0
h
Wheelbase
1094,0
1115,0
1137,0
i
Chainstay length
432,0
432,0
432,0
j
Bottom bracket drop
45,0
45,0
45,0
k
Stack height
552,0
566,0
579,0
l
Reach
413,0
429,0
445,0
m
Standover height
714,0
744,0
774,0
x
Bottom bracket height
310,0
310,0
310,0
y
Front center
666,0
687,0
709,0
