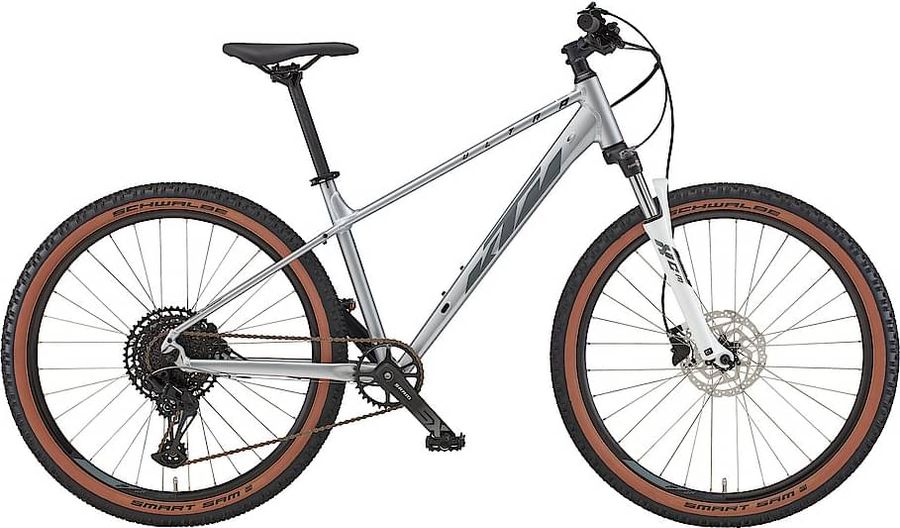

KTM ULTRA GLORIETTE 27 2022
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
14,4 kg
Front travel
80mm
About the KTM ULTRA GLORIETTE 27 2022
The KTM ULTRA GLORIETTE 27 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 14,4 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
KTM COMP 15°
|
|---|---|
|
Saddle
|
KTM LINE SPORT
|
|
Headset
|
RITCHEY Zero Logic PRESS FIT 1-1/8"
|
|
Seatpost
|
KTM COMP 27.2
|
|
Handlebar
|
KTM COMP Riser 20 680-700mm
|
|
Discs
|
Shimano Altus RT10 CL 180 / Altus RT10 CL 160
|
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
|
BL-MT200 SM-RT26* |
|
|
Crankset
|
SRAM SX EAGLE / 34T
|
|---|---|
|
Shifter
|
SRAM SX EAGLE TRIGGER SHIFTER
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Frame
|
29" Alloy 6061 MTB M1110
|
|---|---|
|
Front suspension
|
SR Suntour XCM-RL
|
|
Rims
|
KTM Line - Shimano Tourney HB-TX505 CL 32H 100 QR / KTM 27.5" Sport 32H / Pillar 2.0 INOX silver
|
|---|
Geometry
| Size | SM | MD | LG |
|---|---|---|---|
|
a
Seat tube length
|
370,0
|
420,0
|
470,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
569,0
|
589,0
|
609,0
|
|
d
Head tube length
|
125,0
|
140,0
|
160,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
39,0
|
39,0
|
39,0
|
|
g
Trail
|
102,0
|
102,0
|
102,0
|
|
h
Wheelbase
|
1081,0
|
1103,0
|
1124,0
|
|
i
Chainstay length
|
439,0
|
439,0
|
439,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
573,0
|
586,0
|
605,0
|
|
l
Reach
|
395,0
|
411,0
|
425,0
|
|
m
Standover height
|
728,0
|
755,0
|
787,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
646,0
|
668,0
|
689,0
|
