KTM ULTRA RIDE 29 2021

MTB Cross Country
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,3 kg
Front travel
100mm

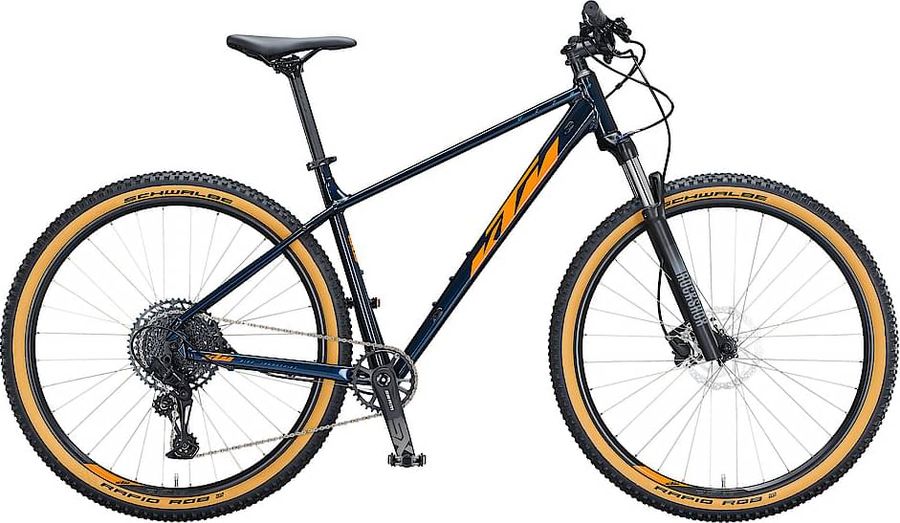

KTM ULTRA RIDE 29 2021

About the KTM ULTRA RIDE 29 2021

The KTM ULTRA RIDE 29 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 14,3 kg.

Features

The KTM ULTRA RIDE 29 2021 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
KTM Comp 7°
Saddle
KTM MTB
Headset
Ritchey Zero Logic PRESS FIT 1-1/8" 15mm cover
Seatpost
KTM Comp 27,2
Handlebar
KTM Comp Riser 15 720mm
Discs
Shimano RT10 CL 180 / 160
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
SRAM SX EAGLE DUB 34
Shifter
SRAM SX EAGLE TRIGGER SHIFTER
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
29" Alloy 6061 MTB M1110
Front suspension
RockShox Judy TK
Wheels
Rims
KTM Line - Shimano HB-TX505 CL 32H QR / KTM 29" 32H ROCKY 22 RX 622x22 / RM 2.0 INOX silver

Geometry

Size SM MD LG XXL XXXL
a
Seat tube length
380,0
430,0
480,0
530,0
570,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
572,0
592,0
612,0
632,0
647,0
d
Head tube length
100,0
110,0
125,0
140,0
160,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
69,0º
f
Rake
44,0
44,0
44,0
44,0
45,0
g
Trail
97,0
97,0
97,0
97,0
96,0
h
Wheelbase
1085,0
1106,0
1128,0
1149,0
1166,0
i
Chainstay length
437,0
437,0
437,0
437,0
437,0
j
Bottom bracket drop
70,0
70,0
70,0
70,0
70,0
k
Stack height
602,0
611,0
626,0
639,0
658,0
l
Reach
398,0
416,0
432,0
448,0
457,0
m
Standover height
759,0
766,0
796,0
828,0
857,0
x
Bottom bracket height
304,0
304,0
304,0
304,0
304,0
y
Front center
657,0
678,0
700,0
721,0
738,0
