Lapierre DH 727 2018

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
18,4 kg
Front travel
200mm
Rear travel
210mm

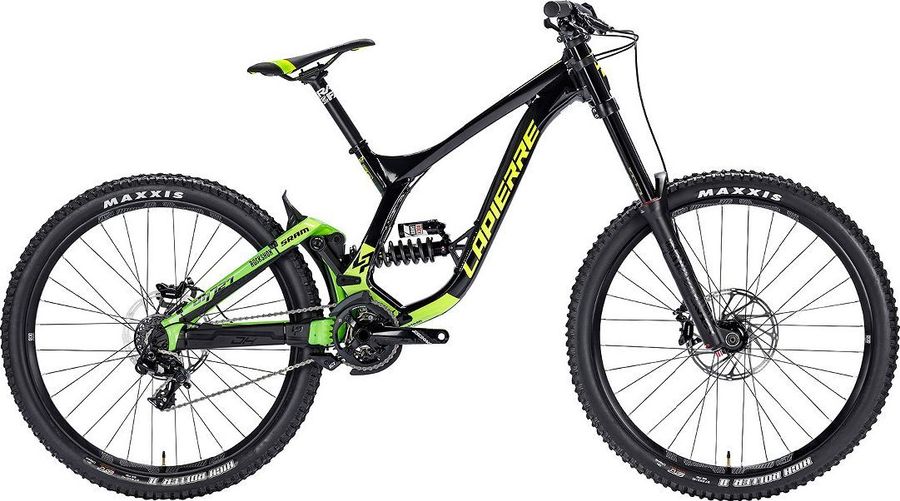

Lapierre DH 727 2018

About the Lapierre DH 727 2018

The Lapierre DH 727 2018 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 18,4 kg.

Features

The Lapierre DH 727 2018 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Lapierre, direct mount, 50mm length, 31.8mm diameter
Saddle
SDG Circuit DH
Headset
FSA Orbit No.57SC, 1.5Z SC, zero-stack
Seatpost
Race Face Chester, 325mm length
Handlebar
Lapierre W, 780mm width, 20mm rise
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
SRAM Descendant DH, 165mm
Shifter
SRAM GX DH, 7-speed
Chain guide
e*thirteen LG1
Bottom bracket
SRAM DH 104.5/107, pressfit
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM PG-720 7s 224 g
Cog finish cassete
Black
Cog sizes
11-25t:11,13,15,17,19,22,25
Gearing
11-25t
Model
CS-PG-720-A1
Name
PG-720 Cassette
Speed
7s
Technology cassete
PG
Weight
224
Frameset
Frame
Aluminum
Rear suspension
RockShox Vivid R2C 468 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
200x57, 216x63, 222x70, 240x76, 267x89
Model
RS-VIVC-R2C-B3
Name
Vivid R2C
Shaft eyelet
Standard
Weight based on
216x63, no coil, no hardware
Weight
468
Front suspension
RockShox Boxxer RC Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-RC-B2
Name
BoXXer RC
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Wheels
Rims
e*thirteen LG1+ 30C
Tires
Maxxis High Roller II 2.4" Dual Ply, super-tacky
Spokes
32 count front and rear
Rear hub
Front: Formula DHL92, 20mm x 110mm, Rear: Formula DHG-150, 12mm x 150mm
Front hub
Front: Formula DHL92, 20mm x 110mm, Rear: Formula DHG-150, 12mm x 150mm

Geometry

Size SM MD LG
a
Seat tube length
-
-
-
b
Seat tube angle
73,0º
73,0º
72,5º
c
Top tube length
600,0
620,0
640,0
d
Head tube length
115,0
115,0
115,0
e
Head tube angle
63,7º
63,7º
63,7º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
-
-
-
i
Chainstay length
445,0
445,0
445,0
j
Bottom bracket drop
5,0
5,0
5,0
k
Stack height
607,0
607,0
607,0
l
Reach
414,0
434,0
454,0
m
Standover height
400,0
400,0
400,0
x
Bottom bracket height
350,0
350,0
350,0
y
Front center
-
-
-
