Lapierre EDGE 527+ 2018

MTB Trail

Groupset

SRAM GX

Frame material

Alloy

Wheel size

27,5"

Suspension type

Hardtail

Weight

12,9 kg

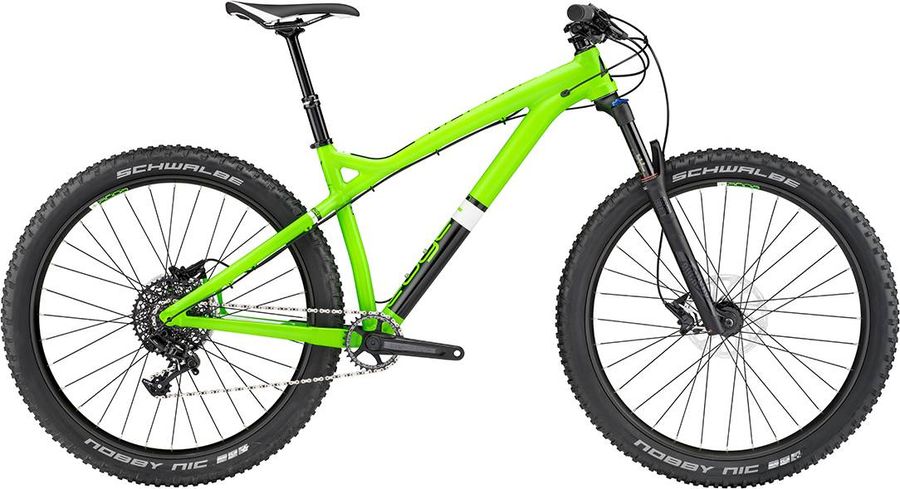

About the Lapierre EDGE 527+ 2018

The Lapierre EDGE 527+ 2018 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 12,9 kg.

Features

The Lapierre EDGE 527+ 2018 has 4 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Components
Steam	LAPIERRE LOCK-ON BLACK / BLACK
Saddle	LAPIERRE VL-1353 by VELO
Headset	FSA ORBIT 1.5E ZS NO.57E + 8mm Top Cap
Seatpost	LAPIERRE YSP-12 DROPPER POST Ø: 31.6mm L: 400mm Travel: 125mm
Handlebar	LAPIERRE Nico Vouilloz Signature W: 760mm R: 15mm Ø: 31.8mm
Brakes	SRAM Level T Hydraulic 410 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-LVL-T-A1 Name Level T Orientation Front, L/F, L/R, R/F, R/R, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor (TARGET) Weight 410

Drivetrain
Crankset	RACE FACE AEFFECT DM 30T BOOST 170mm (S) / 175mm (M, L, XL)
Shifter	SRAM GX TRIGGER 11s
Bottom bracket	SHIMANO KSMBB7141A PRESSFIT
Cassette	SRAM XG-1150 11s
Cog finish cassete Black Cog sizes 10-42t:10,12,14,16,18,21,24,28,32,36,42 Gearing 10-42t Model CS-XG-1150-A1 Name XG-1150 FULL PIN Cassette Speed 11s Technology cassete XG
Rear derailleur	SRAM GX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Aluminum Color Lunar Max tooth 52 Model RD-GX-1-B2 Name GX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s

Frameset
Frame	EDGE + ALLOY SUPREME 6
Front suspension	RockShox Reba RL Solo Air 1620 g
Color Diffusion Black, Gloss Black, Gloss White Damper type n/a, RL fork offset 40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29") Maximum rotor size 200mm Minimum rotor size 160mm Model FS-REBA-RL-A6 Name Reba RL Spring Solo Air Travel (mm) 100mm, 120mm, 80mm Upper tube type 32mm straight wall aluminum Weight based on 15x100 Maxle Stealth, Tapered steerer, 120mm travel Weight 1620 Wheel size 26", 27.5", 27.5" B, 29", 29" B/27.5"+

Wheels
Rims	FORMULA DC711 BOOST 15x110 32H BLACK - FORMULA DHT1481 BOOST 12x148 XD DRIVER 32H BLACK - ALEX MD 40 27.5x40C
Tires	SCHWALBE NOBBY NIC 27.5x2.8 TRAILSTAR / PACESTAR TUBELESS SNAKE SKIN
