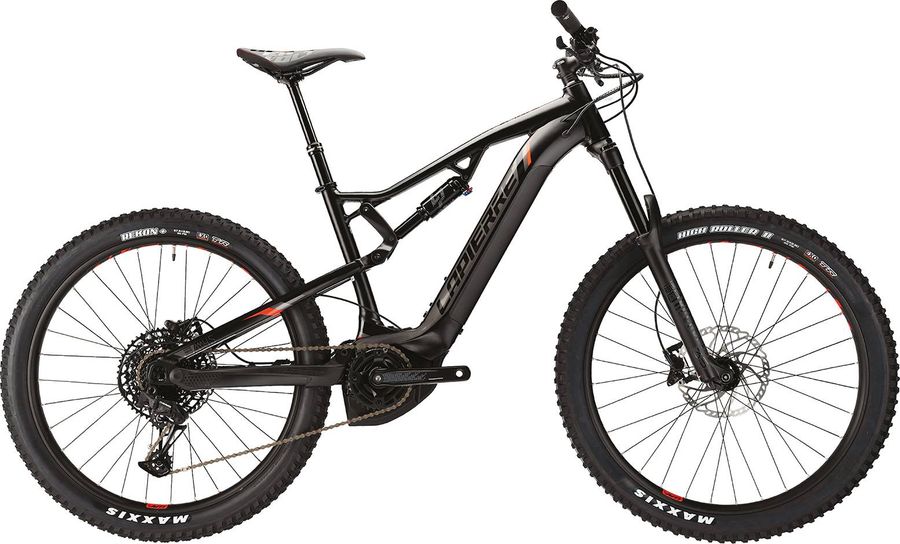

Lapierre OVERVOLT AM 4.5 2020

E-Bike

MTB Enduro

Groupset

SRAM SX Eagle

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Weight

23,8 kg

Front travel

150mm

Rear travel

150mm

About the Lapierre OVERVOLT AM 4.5 2020

The Lapierre OVERVOLT AM 4.5 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and e-thru axle. The bike weighs approximately 23,8 kg.

Features

The Lapierre OVERVOLT AM 4.5 2020 has 5 features listed below.

Dropper seatpost More info

Boost 110 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Tubeless ready More info

Specifications

Acessories
Grip	NEW LAPIERRE DD34 Lock-on
Pedals	FPD NW-91K

Components
Steam	LAPIERRE ALLOY Ø: 31.8mm L: 50mm (S, M, L, XL)
Saddle	LAPIERRE by Velo
Headset	FSA Orbit 1.5 ZS NO.57SC
Seatpost	LAPIERRE DROPPER by JD 130mm travel (100m on S) Ø: 31.6mm L: 350mm
Handlebar	LAPIERRE ALLOY 6061DB W: 760mm R: 15mm Ø: 31.8mm
Brakes	Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Secondary color Silver Hose joint Straight J-Kit spec for OEM Model BR-MT400 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT400 BL-MT401 BL-MT402-3A Recommended disc brake rotor SM-RT30* SM-RT54* SM-RT56*

Drivetrain
Crankset	LAPIERRE OVERVOLT YAMAHA JIS NARROW WIDE 34T 170mm
Motor	YAMAHA PW-ST w/INTEGRATED 500Wh BATTERY LCD display
Shifter	SRAM SX 12 Spd
Chain	SRAM SX Eagle
Cassette	SRAM PG-1210 Eagle 12s
Cog finish cassete Black Cog sizes 11-50t:11,13,15,17,19,22,25,28,32,36,42,50 Gearing 11-50t Model CS-PG-1210-A1 Name PG-1210 Eagle™ Cassette Speed 12s Technology cassete PG
Rear derailleur	SRAM SX Eagle 12s
Cable pull ratio X-actuation Cage Long Cage material Steel Color Black Max tooth 50 Model RD-SX-1-A1 Name SX Eagle Rear Derailleur Pulley bearings material Steel Speed 12s

Frameset
Frame	OVERVOLT OST+ 150mm INTEGRATED YAMAHA SUPREME 5 ALLOY
Front suspension	RockShox 35 Gold RL DebonAir
Color Diffusion Black, Gloss Black Damper type Motion Control fork offset 37mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29") Max tire width (mm) 81 Maximum rotor size 220mm Minimum rotor size 180mm Model FS-35G-RL-A1 Name 35 Gold RL Spring DebonAir Travel (mm) 100mm, 120mm, 130mm, 140mm, 150mm, 160mm Upper tube type 35mm straight wall aluminum Wheel size 27.5", 29"

Wheels
Rims	LAPIERRE eAM+ 32H 584-35c
Tires	MAXXIS 27.5x2.8 HIGH ROLLER II/ REKON+ EXO PROTECTION TUBELESS READY
Rear hub	LP by FASTACE BOOST THRU AXLE 32H e-specific 4SB
Front hub	LP by FASTACE BOOST THRU AXLE 32H
