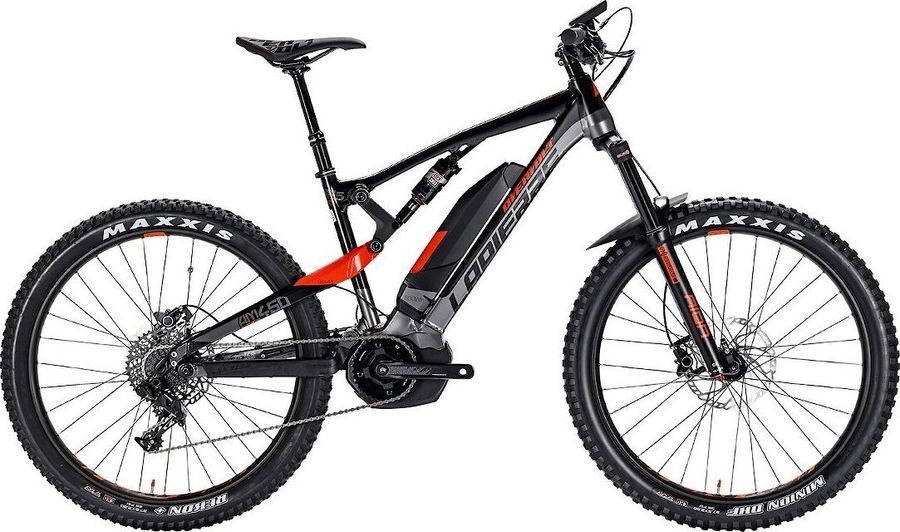

Lapierre Overvolt AM 450+ Yamaha 2018
The Lapierre Overvolt AM 450+ Yamaha 2018 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,2 kg
Front travel
150mm
Rear travel
140mm
About the Lapierre Overvolt AM 450+ Yamaha 2018
The Lapierre Overvolt AM 450+ Yamaha 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,2 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Pedals
|
None included
|
|---|
|
Steam
|
Lapierre Kalloy AS-M05, 55mm length, 31.8mm clamp
|
|---|---|
|
Saddle
|
Lapierre by Velo
|
|
Battery
|
Yamaha Lithion-ion
|
|
Headset
|
FSA Orbit 1.5 ZS (No.57SC)
|
|
Seatpost
|
Lapierre JD YSP-12L Dropper, 100mm (S), 125mm (M-XL), 350mm length
|
|
Handlebar
|
Lapierre 6061DB, 760mm width, 20mm rise, 31.8mm diameter
|
|
Brake lever
|
Shimano M365
|
|
Brakes
|
Shimano Altus BR-M365
|
|
Chain
|
11-speed
|
|---|---|
|
Crankset
|
Lapierre Overvolt Yamaha, 170mm length
|
|
Motor
|
Yamaha PW System, 250W
|
|
Shifter
|
SRAM NX, 11-speed
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Frame
|
Aluminum
|
|---|---|
|
Front suspension
|
SR Suntour Aion 35
|
|
Rear suspension
|
RockShox Monarch R
205 g
|
|
|
|
|
Rims
|
Lapierre eAM+, 32 hole
|
|---|---|
|
Tires
|
Front: Maxxis Minion DHF, 2.8" EXO TR 60 TPI foldable, Rear: Maxxis Rekon+, 2.8" EXO TR 60 TPI foldable
|
|
Rear hub
|
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148s, Boost 12mm x 148mm, Shimano driver
|
|
Front hub
|
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148s, Boost 12mm x 148mm, Shimano driver
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
415,0
|
440,0
|
470,0
|
510,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
568,0
|
598,0
|
623,0
|
648,0
|
|
d
Head tube length
|
120,0
|
130,0
|
140,0
|
150,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
-
|
-
|
-
|
-
|
|
g
Trail
|
-
|
-
|
-
|
-
|
|
h
Wheelbase
|
-
|
-
|
-
|
-
|
|
i
Chainstay length
|
463,0
|
463,0
|
463,0
|
463,0
|
|
j
Bottom bracket drop
|
-5,0
|
-5,0
|
-5,0
|
-5,0
|
|
k
Stack height
|
604,0
|
614,0
|
623,0
|
632,0
|
|
l
Reach
|
383,0
|
410,0
|
432,0
|
454,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
360,0
|
360,0
|
360,0
|
360,0
|
|
y
Front center
|
-
|
-
|
-
|
-
|
