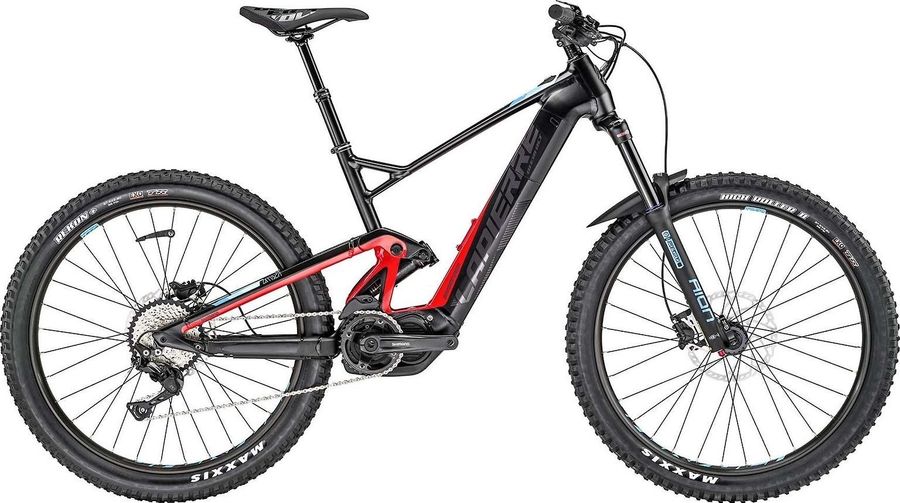

Lapierre Overvolt AM 527i 2018

E-Bike
MTB Enduro
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm
Lapierre Overvolt AM 527i 2018

About the Lapierre Overvolt AM 527i 2018

The Lapierre Overvolt AM 527i 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Lapierre Overvolt AM 527i 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info

Specifications

Acessories
Pedals
None included
Components
Steam
Lapierre ASM05 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Saddle
Lapierre by Velo
Battery
Shimano Integrated
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seatpost
Lapierre YSP15l Dropper, 80mm drop (S), 100mm drop (M,L), 125mm drop (XL)
Handlebar
Lapierre 6061DB, 760mm width, 15mm rise, 31.8mm diameter
Brake lever
Shimano M425
Brakes
Shimano Acera BR-M425
Drivetrain
Chain
10-speed
Crankset
Shimano E8000, 170mm length
Motor
Shimano Steps E8000
Shifter
Shimano Deore M6000, 10-speed
Chain guide
e*thirteen TRS
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Aluminum
Front suspension
SR Suntour Aion 35
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
Lapierre Tryp 30, 32 hole
Tires
Front: Maxxis High Roller II, 2.8" 3c MaxxTerra EXO TR 60 TPI foldable, Rear: Maxxis Rekon+, 2.8" EXO TR 60 TPI foldable
Rear hub
Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver
Front hub
Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
460,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
592,0
607,0
627,0
652,0
d
Head tube length
120,0
130,0
140,0
150,0
e
Head tube angle
65,0º
65,5º
65,5º
65,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
452,0
452,0
452,0
452,0
j
Bottom bracket drop
-15,0
-10,0
-10,0
-10,0
k
Stack height
612,0
619,0
628,0
637,0
l
Reach
436,0
449,0
466,0
489,0
m
Standover height
-
-
-
-
x
Bottom bracket height
370,0
365,0
365,0
365,0
y
Front center
-
-
-
-
