Lapierre Overvolt AM 529i 2018

E-Bike

MTB Trail

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Front travel

140mm

Rear travel

140mm

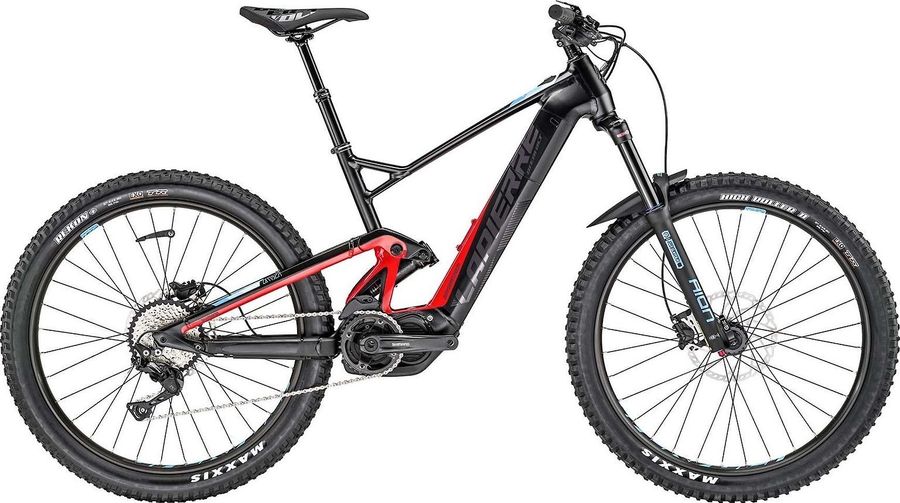

About the Lapierre Overvolt AM 529i 2018

The Lapierre Overvolt AM 529i 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Lapierre Overvolt AM 529i 2018 has 3 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Specifications

Acessories
Pedals	None included

Components
Steam	Lapierre ASM05 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Saddle	Lapierre by Velo
Battery	Shimano Integrated
Headset	FSA Orbit 1.5 ZS (No.57SC)
Seatpost	Lapierre YSP15l Dropper, 80mm drop (S), 100mm drop (M,L), 125mm drop (XL)
Handlebar	Lapierre 6061DB, 760mm width, 15mm rise, 31.8mm diameter
Brake lever	Shimano M425
Brakes	Shimano Acera BR-M425

Drivetrain
Chain	10-speed
Crankset	Shimano E8000, 170mm length
Motor	Shimano Steps E8000
Shifter	Shimano Deore M6000, 10-speed
Chain guide	e*thirteen TRS
Rear derailleur	Shimano Deore RD-M6000-GS GS 10s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 10-speed Lower pulley max 42T Lower pulley min 42T Model RD-M6000-GS P axle finish Painted P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage GS Speeds 10 Upper pulley max 11T Upper pulley min 11T Total capacity 41T
Cassette	Shimano Deore CS-HG500-10

Frameset
Frame	Aluminum
Front suspension	SR Suntour Aion 35
Rear suspension	RockShox Deluxe R
Body eyelet Bearing, No Bushing, Standard Compression tune L, L3, M Eye to eye stroke 145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65 Model RS-DLX-R-B1 Name Deluxe R Rebound tune L, M Shaft eyelet Bearing, Standard, Trunnion

Wheels
Rims	Lapierre Tryp 30, 32 hole
Tires	Maxxis Ardent, 2.4" EXO TR 60 TPI Foldable
Rear hub	Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver
Front hub	Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Deore 1 × 10

Crank: 34T

Cassette: 11-42T

Speeds: 10s

Gearing

Average

0,81

Average

3,1

Compared to similar bikes, the Lapierre Overvolt AM 529i 2018 has a good uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL
a Seat tube length	390,0	430,0	460,0	500,0
b Seat tube angle	76,0º	75,5º	75,5º	75,5º
c Top tube length	582,0	602,0	622,0	647,0
d Head tube length	120,0	120,0	120,0	130,0
e Head tube angle	67,0º	67,0º	67,0º	67,0º
f Rake	-	-	-	-
g Trail	-	-	-	-
h Wheelbase	-	-	-	-
i Chainstay length	467,0	467,0	467,0	467,0
j Bottom bracket drop	30,0	25,0	25,0	25,0
k Stack height	635,0	630,0	630,0	639,0
l Reach	425,0	441,0	461,0	484,0
m Standover height	-	-	-	-
x Bottom bracket height	325,0	330,0	330,0	330,0
y Front center	-	-	-	-
