Lapierre Overvolt AM 800+ 2018

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,7 kg
Front travel
150mm
Rear travel
150mm

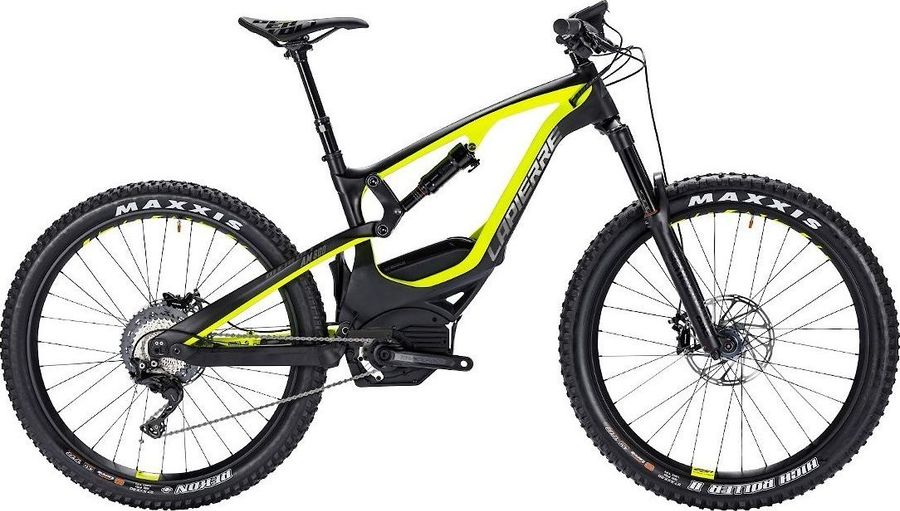

Lapierre Overvolt AM 800+ 2018

About the Lapierre Overvolt AM 800+ 2018

The Lapierre Overvolt AM 800+ 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 22,7 kg.

Features

The Lapierre Overvolt AM 800+ 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
None included
Components
Steam
Lapierre 6061 CNC, 35mm length (S), 45mm length (M-L), 31.8mm clamp
Saddle
Lapierre by Velo
Battery
Bosch Lithium-ion
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seatpost
Lapierre Dropper, 75mm (S) 125mm (M) 150mm (L), 350mm length
Handlebar
Lapierre 6061DB, 760mm width, 20mm rise, 31.8mm diameter
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Chain
11-speed
Crankset
Race Face Aeffect, 170mm length
Motor
Bosch Performance CX, 250W
Shifter
Shimano SLX SL-M7000, 11-speed
Chain guide
Yes
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
Lapierre eAM+
Tires
Front: Maxxis Minion DHF, 2.8" EXO TR, Rear: Maxxis Rekon+, 2.8" 3c EXO TR
Spokes
J-bend
Rear hub
Lapierre eAM+, Boost front and rear
Front hub
Lapierre eAM+, Boost front and rear

Geometry

Size SM MD LG
a
Seat tube length
420,0
440,0
480,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
573,0
603,0
628,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
-
-
-
i
Chainstay length
478,0
478,0
478,0
j
Bottom bracket drop
-5,0
-5,0
-5,0
k
Stack height
600,0
609,0
619,0
l
Reach
390,0
418,0
440,0
m
Standover height
-
-
-
x
Bottom bracket height
360,0
360,0
360,0
y
Front center
-
-
-
