Lapierre Overvolt AM 827i 2018

E-Bike
MTB Enduro
Groupset
Shimano XT Di2
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
160mm

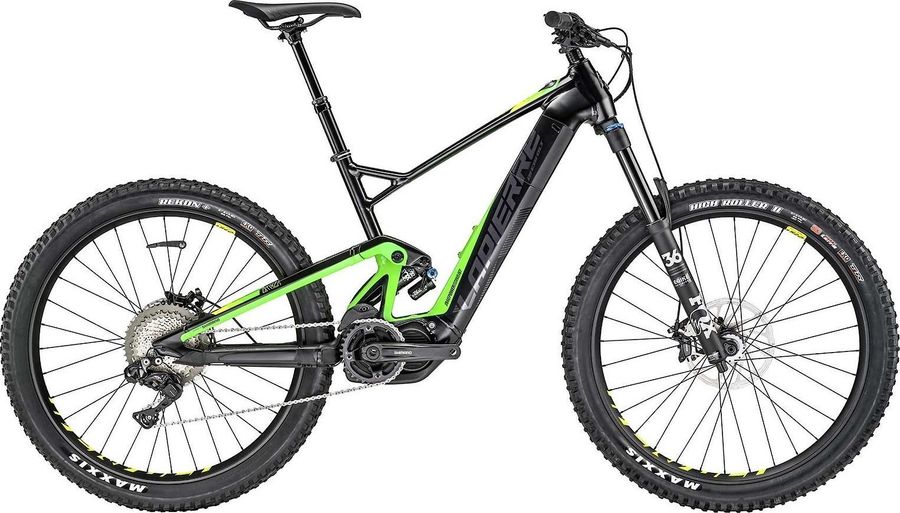

Lapierre Overvolt AM 827i 2018

About the Lapierre Overvolt AM 827i 2018

The Lapierre Overvolt AM 827i 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost e hydraulic disc brakes.

Features

The Lapierre Overvolt AM 827i 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
None included
Components
Steam
Pro Tharsis Trail 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Saddle
Fi'zi:k Gobi M5 Kium
Battery
Shimano Integrated
Headset
FSA Orbit 1.5 ZS (No.57)
Seatpost
Lapierre Dropper, 75mm drop (S), 125mm drop (M,L), 150mm drop (XL)
Handlebar
Pro Koryak Di2, 760mm width, 20mm rise, 31.8mm diameter
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Chain
11-speed
Crankset
Shimano E8000, 170mm length
Motor
Shimano Steps E8000
Shifter
Shimano XT Di2, 11-speed
Chain guide
e*thirteen TRS
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Frameset
Frame
Aluminum
Rear suspension
Fox Float DPX2 Performance
Front suspension
Fox 36 Float Performance
Wheels
Rims
Lapierre EAM+
Tires
Front: Maxxis High Roller II, 2.8" 3c MaxxTerra, Rear: Maxxis Rekon+ 2.8", EXO TR foldable 60tpi
Spokes
J-bend
Rear hub
Lapierre EAM+, Boost front and rear
Front hub
Lapierre EAM+, Boost front and rear

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
460,0
500,0
b
Seat tube angle
75,5º
75,5º
75,5º
75,5º
c
Top tube length
592,0
607,0
627,0
652,0
d
Head tube length
120,0
130,0
140,0
150,0
e
Head tube angle
65,0º
65,5º
65,5º
65,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
452,0
452,0
452,0
452,0
j
Bottom bracket drop
-15,0
-10,0
-10,0
-10,0
k
Stack height
612,0
619,0
628,0
637,0
l
Reach
436,0
449,0
466,0
489,0
m
Standover height
-
-
-
-
x
Bottom bracket height
370,0
365,0
365,0
365,0
y
Front center
-
-
-
-
