Lapierre Overvolt AM 829i 2018

E-Bike
MTB Trail
Groupset
Shimano XT Di2
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
140mm
Rear travel
140mm

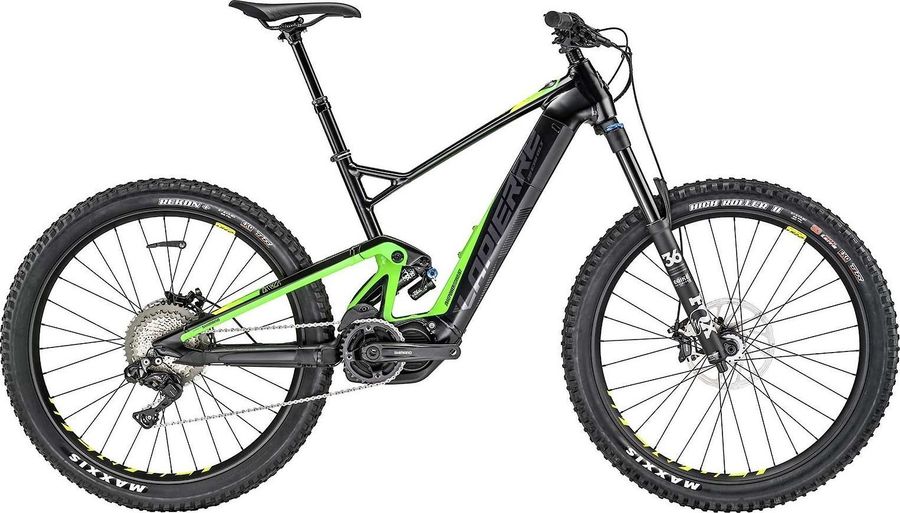

Lapierre Overvolt AM 829i 2018

About the Lapierre Overvolt AM 829i 2018

The Lapierre Overvolt AM 829i 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Lapierre Overvolt AM 829i 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
None included
Components
Steam
Pro Tharsis Trail 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Saddle
Fi'zi:k Gobi M5 Kium
Battery
Shimano Integrated
Headset
FSA Orbit 1.5 ZS (No.57)
Seatpost
Lapierre Dropper, 75mm drop (S), 125mm drop (M,L), 150mm drop (XL)
Handlebar
Pro Koryak Di2, 760mm width, 20mm rise, 31.8mm diameter
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Chain
11-speed
Crankset
Shimano E8000, 170mm length
Motor
Shimano Steps E8000
Shifter
Shimano XT Di2, 11-speed
Chain guide
e*thirteen TRS
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano Deore XT RD-M8050 Di2
Frameset
Frame
Aluminum
Front suspension
Fox 34 Float Performance
Rear suspension
Fox Float DPS Performance EVOL
Wheels
Rims
Lapierre Tryp 30, 32 hole
Tires
Schwalbe Nobby Nic, 2.6" Addix Speed Grip, folding, Snake Skin, Tubeless Easy
Rear hub
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148S, Boost 12mm x 148mm, Shimano driver
Front hub
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148S, Boost 12mm x 148mm, Shimano driver

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
460,0
500,0
b
Seat tube angle
76,0º
75,5º
75,5º
75,5º
c
Top tube length
582,0
602,0
622,0
647,0
d
Head tube length
120,0
120,0
120,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
467,0
467,0
467,0
467,0
j
Bottom bracket drop
30,0
25,0
25,0
25,0
k
Stack height
635,0
630,0
630,0
639,0
l
Reach
425,0
441,0
461,0
484,0
m
Standover height
-
-
-
-
x
Bottom bracket height
325,0
330,0
330,0
330,0
y
Front center
-
-
-
-
