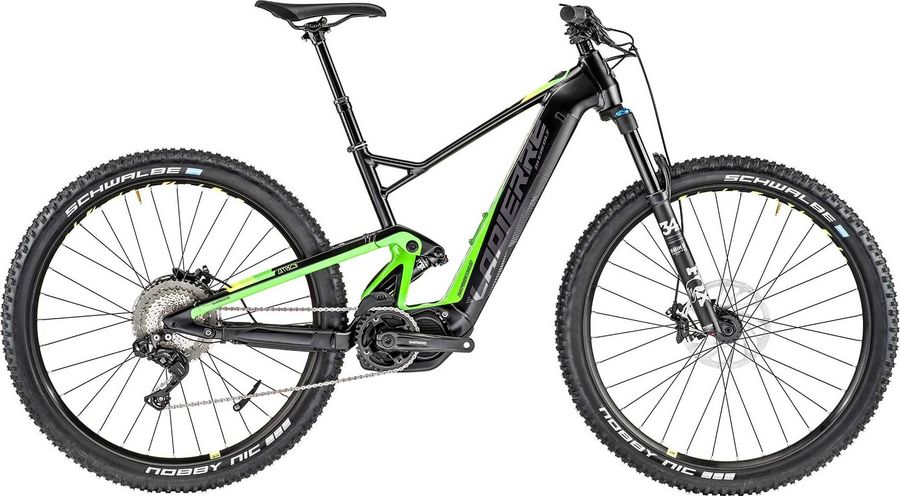

Lapierre OVERVOLT AM 829i SHIMANO 2018

E-Bike

MTB Trail

Groupset

Shimano XT Di2

Frame material

Alloy

Wheel size

27,5"

Suspension type

Full suspension

Front travel

140mm

Rear travel

140mm

About the Lapierre OVERVOLT AM 829i SHIMANO 2018

The Lapierre OVERVOLT AM 829i SHIMANO 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT Di2 drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Lapierre OVERVOLT AM 829i SHIMANO 2018 has 4 features listed below.

Dropper seatpost More info

Boost 110 More info

Boost 148 More info

Hydraulic disc brakes More info

Specifications

Components
Steam	PRO THARSIS TRAIL 0° Ø: 31.8mm L: 35mm (S,M), 45mm (L,XL)
Saddle	FIZIK GOBI M5 KIUM
Headset	FSA ORBIT 1.5 ZS NO.57SC
Seatpost	LAPIERRE DROPPER 75mm travel (S), 125mm (M,L), 150mm (XL) Ø: 31.6mm
Handlebar	PRO KORYAK Di2 W: 760mm R: 20mm Ø: 31.8mm
Brakes	SRAM Guide RE Hydraulic 415 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-GDE-RE-A1 Name Guide RE Orientation Front, Rear Pad type disc Steel-backed metal sintered Weight based on Direct Mount, 800mm hose, 160mm CL Rotor (TARGET) Weight 415

Drivetrain
Crankset	SHIMANO E8000 34T 170mm + e13 TRS guide
Motor	SHIMANO STEPS E8000, INTEGRATED 500Wh battery, SHIMANO E8000 display
Shifter	SHIMANO XT Di2
Cassette	Shimano Deore XT CS-M8000 HG
Aluminum gear pieces 2 Aluminum spider arm finish Anodized Aluminum spider arm pieces 2 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Anodized Lock ring material Aluminum Model CS-M8000 Steel gear finish Shot-Ni Steel gear pieces 9 Type HG Weights 11-40T: 411g 11-42T: 434g 11-46T: 437g
Rear derailleur	Shimano Deore XT RD-M8050 Di2

Frameset
Frame	OVERVOLT 140mm STEPS INTEGRATED SUPREME 5 ALLOY BOOST
Front suspension	Fox 34 Float Performance

Wheels
Rims	FORMULA DC711 15x110 BOOST 32H/ FORMULA DHT-148S 12x148 BOOST SHIMANO DRIVER 32H/ LAPIERRE TRYP30 32H 622-30c
Tires	SCHWALBE 29X2.60 NOBBY NIC ADDIX SPEED GRIP, FOLDING, SNAKE SKIN, TUBELESS EASY
