BikeWise

Lapierre Overvolt AM 900i 2018

E-Bike
MTB Enduro
Groupset
SRAM X01
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm

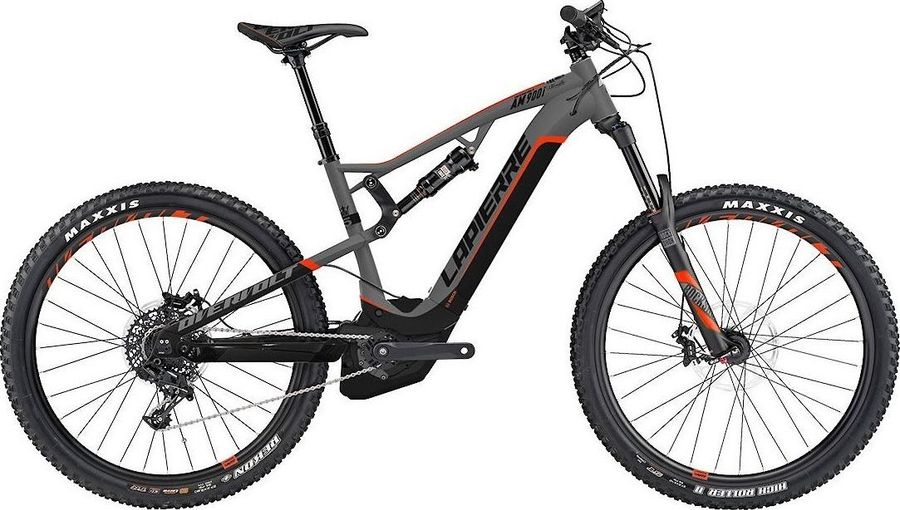

Lapierre Overvolt AM 900i 2018

About the Lapierre Overvolt AM 900i 2018

The Lapierre Overvolt AM 900i 2018 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Lapierre Overvolt AM 900i 2018 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
None included
Components
Steam
Lapierre 6061DB CNC 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Saddle
Fi'zi:k Gobi M5 Kium
Battery
Bosch PowerTube Lithium-ion
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seatpost
Lapierre Dropper, trigger, 100mm (S), 125mm (M-L), 150mm (XL)
Handlebar
Lapierre 6061DB, 760mm width, 20mm rise, 31.8mm diameter
Brake lever
SRAM Guide RE
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Chain
11-speed
Crankset
Race Face Aeffect, 170mm length
Motor
Bosch Performance CX, 250W
Shifter
SRAM GX, 11-speed
Chain guide
Anti Chain Suck
Rear derailleur
SRAM X01 11s 250 g
Cable pull ratio
X-actuation
Cage
Long, n/a
Cage material
Aluminum, Carbon
Color
Black, Blue, Green, Red
Max tooth
42
Model
RD-X0-1-A2
Name
X01® X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
250
Cassette
Sunrace CSMS8 11-46T
Frameset
Frame
Aluminum
Rear suspension
RockShox Super Deluxe RC3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L1, L3, M
Eye to eye stroke
165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RC3-B1
Name
Super Deluxe RC3
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
Lapierre eAM+, 32 hole
Tires
Front: Maxxis High Roller II, 2.8" 3c MaxxTerra EXO TR 60 TPI foldable, Rear: Maxxis Rekon+, 2.8" EXO TR 60 TPI foldable
Spokes
J-bend
Rear hub
Lapierre eAM+, Front: Boost, 15mm x 110mm, torque caps, Rear: Boost, 12mm x 148mm
Front hub
Lapierre eAM+, Front: Boost, 15mm x 110mm, torque caps, Rear: Boost, 12mm x 148mm

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
430,0
460,0
500,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
580,0
610,0
635,0
660,0
d
Head tube length
120,0
130,0
140,0
150,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
460,0
460,0
460,0
460,0
j
Bottom bracket drop
-5,0
-5,0
-5,0
-5,0
k
Stack height
606,0
616,0
625,0
634,0
l
Reach
395,0
422,0
444,0
466,0
m
Standover height
-
-
-
-
x
Bottom bracket height
360,0
360,0
360,0
360,0
y
Front center
-
-
-
-
