BikeWise

Lapierre Overvolt AM Team 2018

E-Bike
MTB Enduro
Groupset
SRAM EX1
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,8 kg
Front travel
160mm
Rear travel
160mm

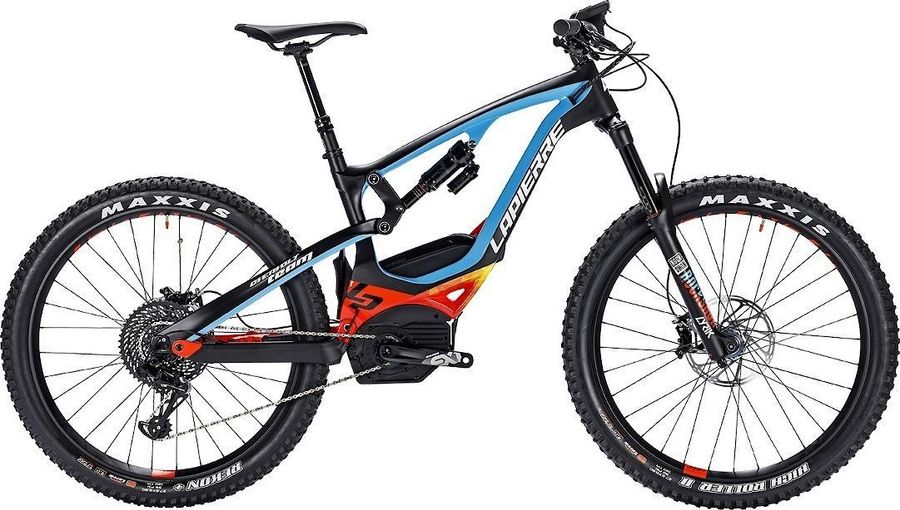

Lapierre Overvolt AM Team 2018

About the Lapierre Overvolt AM Team 2018

The Lapierre Overvolt AM Team 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM EX1 drivetrain of 8 gears (1x8). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 22,8 kg.

Features

The Lapierre Overvolt AM Team 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
None included
Components
Steam
Lapierre 6061 CNC, 35mm length (S), 45mm length (M-L), 31.8mm clamp
Saddle
Fi'zi:k Gobi M5
Battery
Bosch Lithium-ion
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seatpost
RockShox Reverb, 100mm drop (S) 125mm drop (M, L) 150mm drop (Xl), 340mm length
Handlebar
Race Face SixC, carbon, 785mm width, 31.8mm diameter
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Chain
8-speed
Crankset
SRAM EX1 Isis, 170mm length
Motor
Bosch Performance CX, 250W
Shifter
SRAM EX1, 8-speed
Chain guide
Yes
Rear derailleur
SRAM EX1 X-HORIZON Rear Derailleur 8s
Cable pull ratio
1:1
Cage material
Aluminum
Color
Black
Max tooth
48
Model
RD-EX1-A1
Name
EX1 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
8s
Cassette
SRAM XG-899 E-BLOCK Cassette 8s 320 g
Cog finish cassete
Black
Cog sizes
11-48t:11,13,15,18,24,32,40,48
Gearing
11-48t
Model
CS-XG-899-A1
Name
XG-899 E-BLOCK™ Cassette
Speed
8s
Technology cassete
XG
Weight
320
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Super Deluxe RC3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L1, L3, M
Eye to eye stroke
165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RC3-B1
Name
Super Deluxe RC3
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Lyrik RCT3 Dual Position Air, Solo Air 2005 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
42mm (27.5"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-LYRK-RCT3-A1
Name
Lyrik RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27/29 Solo Air, RCT3, 180mm travel
Weight
2005
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Lapierre eAM+
Tires
Front: Maxxis Minion DHF, 2.8" EXO TR, Rear: Maxxis Rekon+, 2.8" 3c EXO TR
Spokes
J-bend
Rear hub
Lapierre eAM+, Boost front and rear
Front hub
Lapierre eAM+, Boost front and rear

Geometry

Size SM MD LG
a
Seat tube length
420,0
440,0
480,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
573,0
603,0
628,0
d
Head tube length
110,0
120,0
130,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
-
-
-
g
Trail
-
-
-
h
Wheelbase
-
-
-
i
Chainstay length
478,0
478,0
478,0
j
Bottom bracket drop
-5,0
-5,0
-5,0
k
Stack height
600,0
609,0
619,0
l
Reach
390,0
418,0
440,0
m
Standover height
-
-
-
x
Bottom bracket height
360,0
360,0
360,0
y
Front center
-
-
-
